# Connect the Multi-Function Cable

The terminal uses a multi-function cable to provide access to the supported connections. Countertop terminals generally require AC power and Ethernet connections. Your configuration may also include a connection to a POS system.

#### **To connect the multi-function cable:**

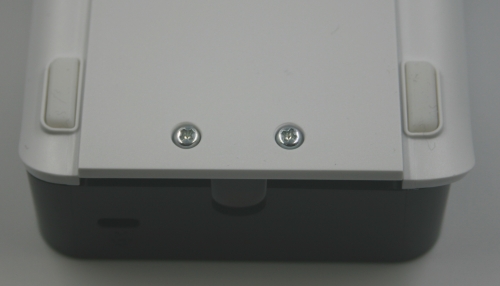

1. On the back of the terminal at the top, use a #1 Phillips screwdriver to loosen the two screws securing the cover.

\
![A35 back cover](https://documentation.payfacto.com/Terminals/A35/CA-EN/assets/images/A35_BackCover.png)

{% hint style="info" %}
NOTE: You do not need to remove the screws from the cover; they are designed to remain attached.
{% endhint %}

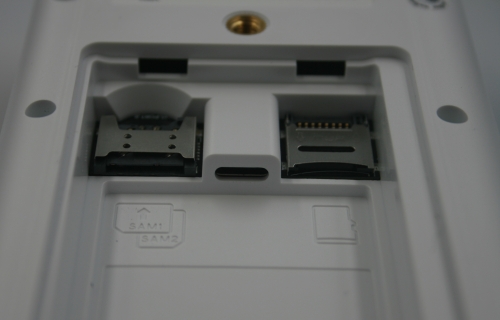

2. Remove the cover from the back of the terminal and locate the USB Type-C plug between the slots for the MicroSD and SAM cards.

\
![A35 multi-function cable plug](https://documentation.payfacto.com/Terminals/A35/CA-EN/assets/images/A35_PlugForMultiFunction.png)

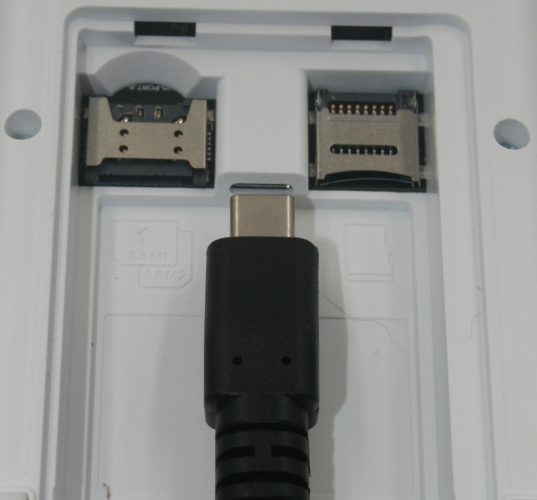

3. Insert the multi-function cable’s USB Type-C connector into the terminal’s corresponding plug.

\
![A35 insert multi-function plug](https://documentation.payfacto.com/Terminals/A35/CA-EN/assets/images/A35_InsertMultiFunction.png)

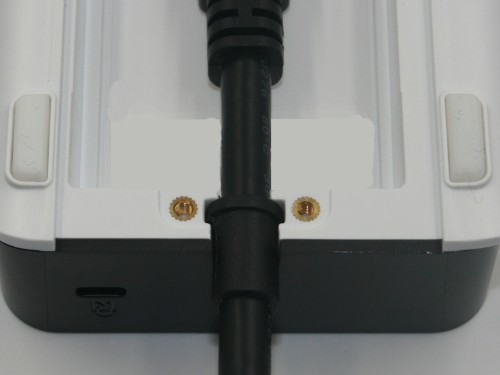

4. After you connect the multi-function cable to the terminal, make sure that the strain relief sleeve is seated in the slot at the top of the terminal.

{% hint style="info" %}
NOTE: You can move the strain relief sleeve along the multi-function cable to position it correctly.
{% endhint %}

![A35 strain relief](https://documentation.payfacto.com/Terminals/A35/CA-EN/assets/images/A35_StrainRelief.png)

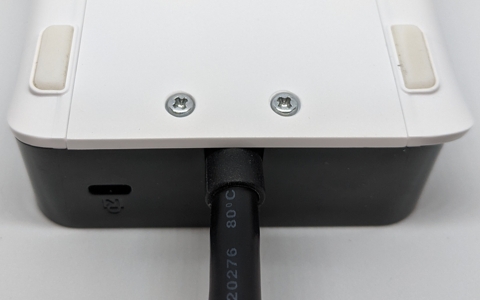

5. Re-install the cover and tighten the two screws to complete the cable installation.

\
![A35 multi-function cable installed](https://documentation.payfacto.com/Terminals/A35/CA-EN/assets/images/A35_MultiFunctionCableInstalled.png)
