Terminal Activation User Guide

Terminal Activation

PayFacto uses a self-service terminal activation procedure designed to save time while also providing better security. The activation procedure applies only to counter-top and mobile PAX payment terminals using the Android operating system.

The activation procedure applies to:

  • All new merchants activating their terminals for the first time

  • Any existing merchants adding new payment terminals

  • Any existing merchants receiving replacement terminals


Overview

After you configure the terminal's network connection(s) and power on the terminal, the activation procedure comprises of 2 parts:

NOTE: If you have multiple new payment terminals, you need to perform the activation procedure on each terminal individually.


Activate Terminal

After configuring the terminal’s network connection, you need to start the Secure Payment application to complete the remaining steps. Terminal activation requires that you input a One Time Passcode (OTP) that PayFacto sends to the email address or telephone number registered to your account.

To activate the payment terminal:

  1. Touch the SECURE PAYMENT icon on the main screen. The Welcome to your payment terminal screen appears.

NOTE: The terminal may need to download host and security parameters; this can take a few moments.

  1. Touch the Tap to continue button to begin the activation process.

  2. Touch the desired option to receive the OTP.

Email Phone Number

  1. Touch the Send Code button.

  1. If you select Email, look for a message from [email protected].

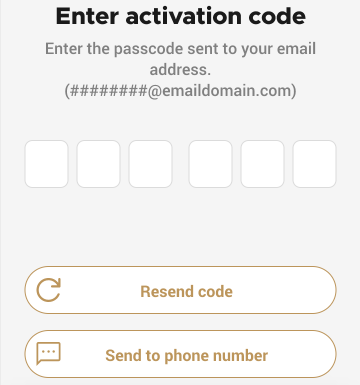

  2. After you receive the 6-digit activation code, use the on-screen keypad to enter the code on the Enter activation code screen and touch the Confirm & activate button.

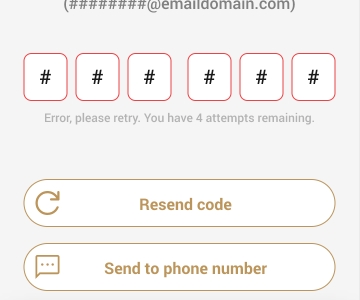

  3. If you enter the code incorrectly, the outline for the fields changes to red to indicate that the code is incorrect.

  4. Re-enter the code and touch the Confirm & activate button, or touch Resend Code to obtain a new OTP.

  5. After you enter the OTP successfully, the payment application displays the Set Admin Password screen to configure your terminal passwords.


Set Passwords

To prevent unauthorized individuals from changing the terminal’s configuration, you need to set the Administrator and Merchant passwords. These passwords restrict access to certain functions on the terminal.

When setting your passwords, you must respect the following parameters:

  • Passwords must be 6 characters long

  • The Administrator and Merchant passwords cannot be the same (can’t match)

  • You cannot use the same digit 6 times consecutively (for example: 111111 or 777777)

  • You cannot use 6 consecutive numbers, either ascending or descending (for example: 123456 or 987654)

To set your Administrator and Merchant passwords:

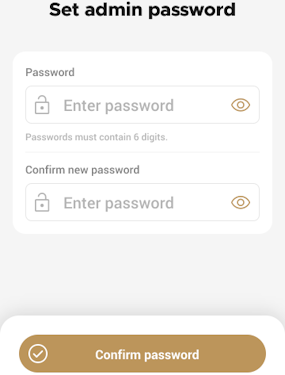

  1. On the Set admin password screen, use the on-screen keypad to enter a 6-digit password in the Password field.

  2. Re-enter the password in the Confirm new password field.

  3. Touch the Confirm password button.

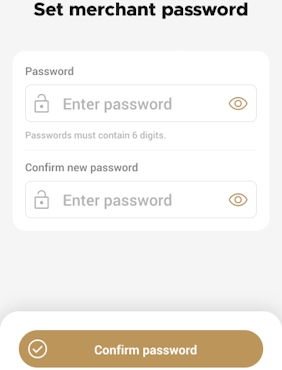

  4. On the Set merchant password screen, use the on-screen keypad to enter a 6-digit password in the Password field.

  5. Re-enter the password in the Confirm new password field.

  6. Touch the Confirm password button.

Your payment terminal is now activated and ready for use.
