Configuring the Terminal Wi-Fi Connection

This section explains how to turn Wi-Fi on and connect to your network.

To connect to your wireless network:

1. On the terminal’s main screen, touch the Settings icon.

2. On the Settings screen, touch the Please Input Password field and use the keypad to type the password: pax9876@@.

3. Touch the checkmark icon on the keypad when you are done and touch OK.

4. On the Settings page, touch Network & Internet.

5. On the Network & Internet page, touch Wi-Fi.

6. If Wi-Fi is Off, touch the toggle to turn it on. If Wi-Fi is already on, a list of available networks appears.

7. From the list of available networks, touch the name of the network you want to connect to.

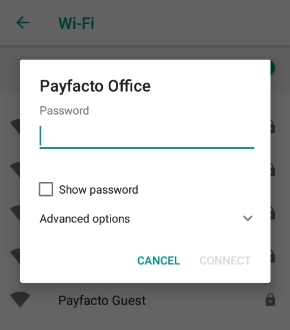

8. Enter the password for the selected network and touch CONNECT.

TIP: You can touch Show password before typing to ensure you are entering the password correctly.

1. After the terminal displays Connected for the selected network, touch the Back icon to return to the Network & Internet page.
