# Installing the T Bracket

### Installing the T Bracket

The A80 cable attachment is anchored by a T bracket that keeps the attached cables from being accidentally disconnected .

#### To install the T bracket on the terminal:

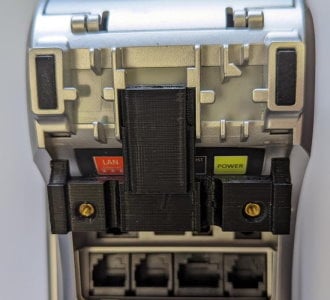

1. With the terminal turned over, insert the T bracket into the guides on the underside of the A80 terminal.

\
![Insert T bracket](https://documentation.payfacto.com//Accessories/A80_Cable_Attachment/CA-EN/assets/images/InsertTbracket.jpg)

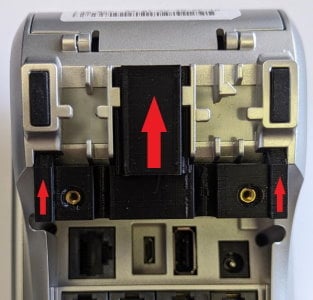

2. Slide the T bracket up by pushing it from the bottom  towards the top of the terminal.

\
![T bracket installed](https://documentation.payfacto.com//Accessories/A80_Cable_Attachment/CA-EN/assets/images/TbracketInstalled.jpg)

***

### Securing the T Bracket to the Terminal

To prevent the T bracket and cables from sliding off the terminal, you must next secure the T bracket to the terminal.

#### To secure the T bracket to the terminal:

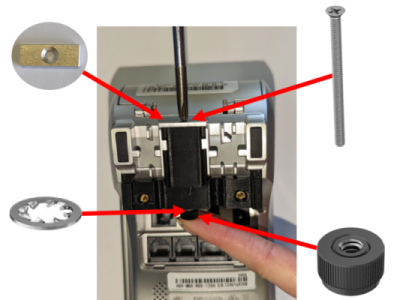

1. Place the short metal bracket at the top of the T bracket and insert the long screw at the opening near the top of the terminal.

\
![Short metal bracket](https://documentation.payfacto.com//Accessories/A80_Cable_Attachment/CA-EN/assets/images/ShortMetalBracket.jpg) ![Long screw](https://documentation.payfacto.com//Accessories/A80_Cable_Attachment/CA-EN/assets/images/LongScrew.png) ![Screw inserted](https://documentation.payfacto.com//Accessories/A80_Cable_Attachment/CA-EN/assets/images/ScrewInserted.jpg)

2. When the end of the long screw comes out of the bottom of the T bracket, place the metal washer over the screw and then thread the thumb nut onto the end of the screw.

\
![Metal washer](https://documentation.payfacto.com//Accessories/A80_Cable_Attachment/CA-EN/assets/images/MetalWasher.png) ![Thumb nut](https://documentation.payfacto.com//Accessories/A80_Cable_Attachment/CA-EN/assets/images/ThumbNut.png)

3. Using a Phillips head screwdriver, tighten the screw securely (but not excessively) into the thumb nut.

\
![T bracket assembly](https://documentation.payfacto.com//Accessories/A80_Cable_Attachment/CA-EN/assets/images/TbracketAssembly.png)


---
