Connect the Multi-Function Cable

PreviousTerminal Setup and ConfigurationNextPower On the Terminal

Last updated 1 year ago

Was this helpful?

The terminal uses a multi-function cable to provide access to the supported connections. Countertop terminals generally require AC power and Ethernet connections. Your configuration may also include a connection to a POS system.

To connect the multi-function cable:

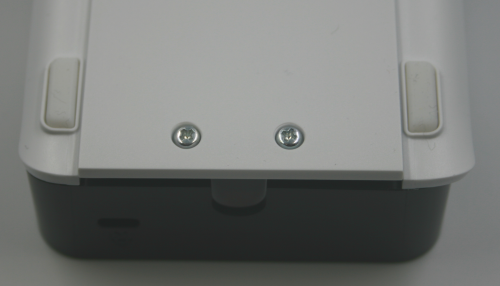

  1. On the back of the terminal at the top, use a #1 Phillips screwdriver to loosen the two screws securing the cover.

NOTE: You do not need to remove the screws from the cover; they are designed to remain attached.

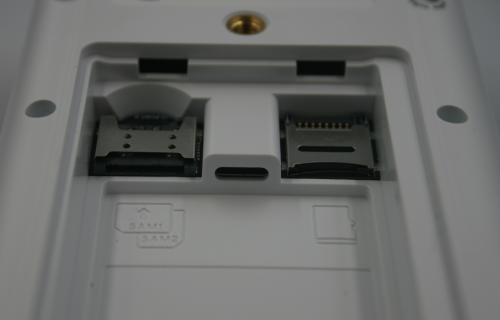

  1. Remove the cover from the back of the terminal and locate the USB Type-C plug between the slots for the MicroSD and SAM cards.

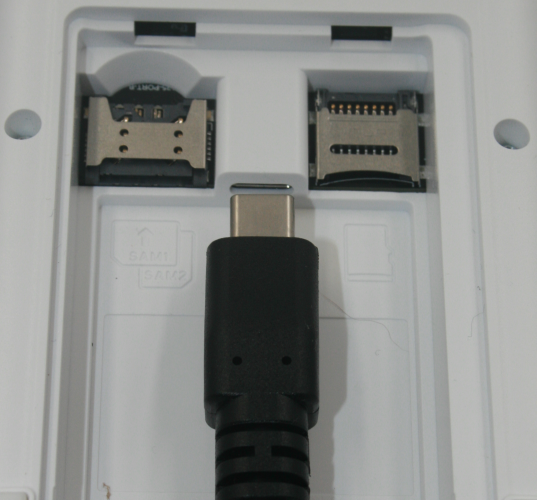

  1. Insert the multi-function cable’s USB Type-C connector into the terminal’s corresponding plug.

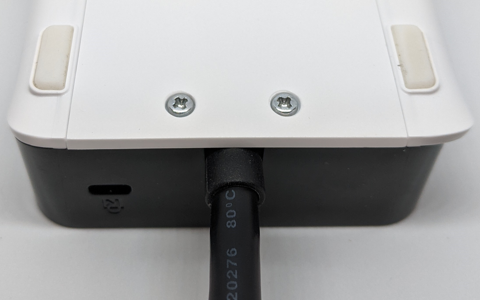

  1. After you connect the multi-function cable to the terminal, make sure that the strain relief sleeve is seated in the slot at the top of the terminal.

NOTE: You can move the strain relief sleeve along the multi-function cable to position it correctly.

  1. Re-install the cover and tighten the two screws to complete the cable installation.
