Point of Sale Control Setup

Point of Sale Control Setup

There are 3 elements to configure within the Point of Sale Control Module:

• Edit Employee Configurations

• Edit Employee File

• Create a screen Layout button

---

Edit employee configuration(s) used by bartenders:

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)

Maitre'D Logon Screen

1. Start the Point of Sale Control module.

Module Icon - Point of Sale Control

1. Click on the Employees menu and select Configuration...

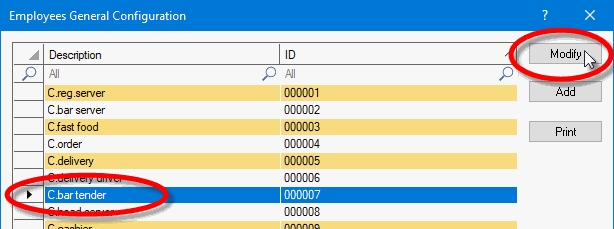

1. The Employees General Configuration list will be displayed. Select the configuration that will be used by bartenders and click the Modify button.

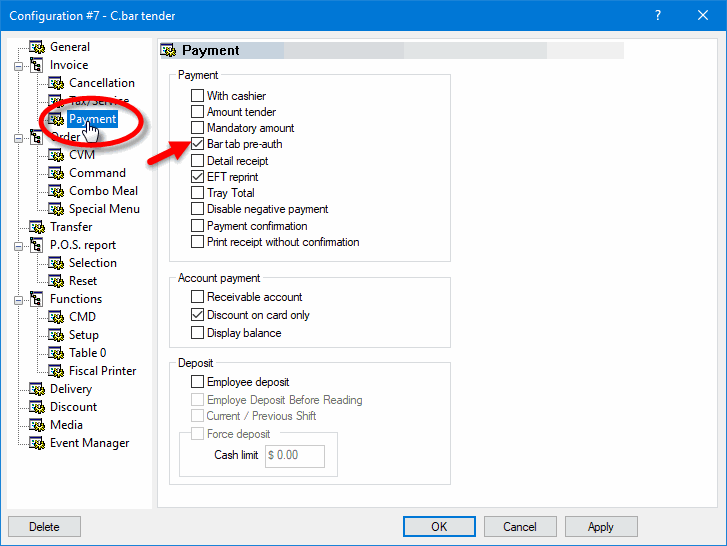

1. Under the Invoice branch, select the Payment sub-branch. Then, in the Payment section, enable the Bar tab pre-auth option.

Bar Tab Pre-Auth

Enable this option to allow the employee to open a bar tab using a credit card and request a pre-authorization to cover a running tab.

1. Click Apply and then OK to save changes and close the options screen.

2. Close the Employees General Configuration list, but do not close the Point of Sale module yet.

---

Edit Employee Files

Repeat the steps below for every employee who will need to open bar tabs:

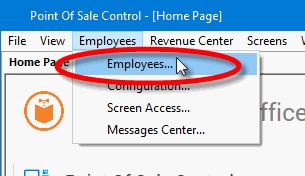

1. Click on the Employees menu and select Employees...

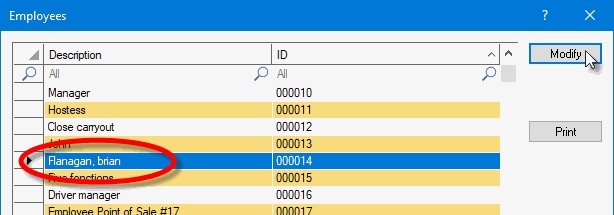

1. The list of employees will be displayed. Select an employee using the Bartender function and click the Modify button.

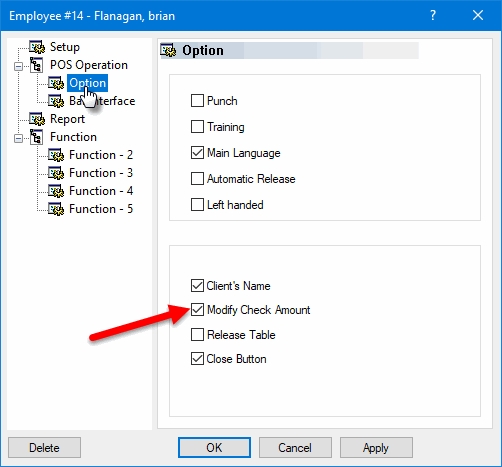

1. Under the POS Operation branch, click the Option sub-branch. Enable the Modify Check Amount option.

Modify Check Amount

Enable this option to allow the employee to apply a "Pre-auth Capture" to a check closed by a credit card authorization transaction. This is necessary to close the check to an amount that is different from the pre-authorized amount, and also to add tips to the charged amount.

1. Click Apply and then OK to save changes and close the options screen.

2. Close the Employees list, but do not close the Point of Sale module yet.

---

Create a Screen Layout Button for Bar Tabs

A button needs to be added to the bartender's screen layout, which will allow employees to easily open bar tabs.

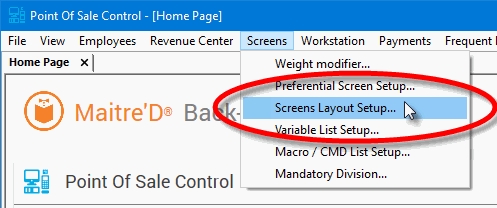

1. Click on the Screens menu and select Screens Layout Setup...

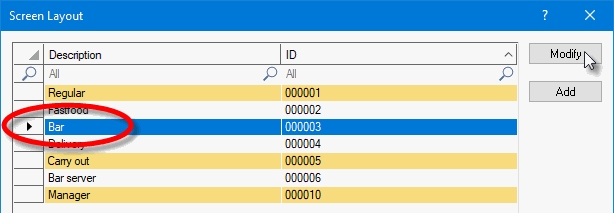

1. The list of available screen layouts will be displayed. Select the layout that will be used by bartenders and click the Modify button.

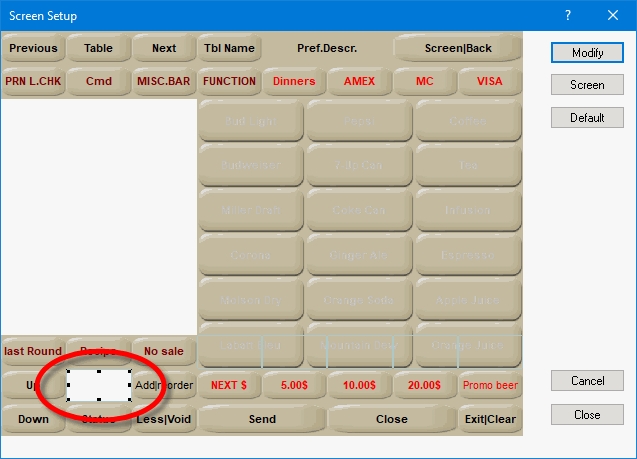

1. The selected layout will be displayed. Locate an appropriate spot for the bar tab button, select it and click Modify.

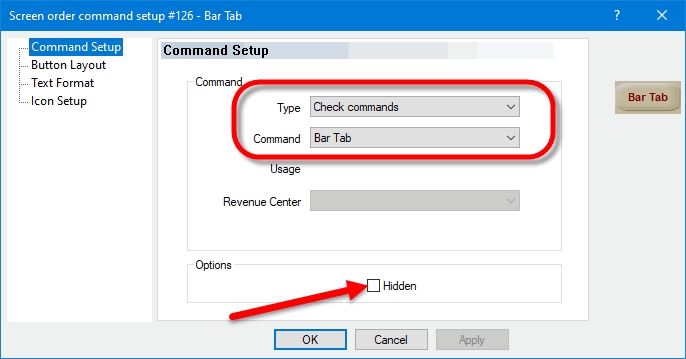

1. ,Configure the button as follows:

Type

Select Check Commands from the drop-down list.

Command

Select Bar Tab from the drop-down list.

Hidden

Make sure to un-check this option to make the button visible.

Button Layout branch

Configure this section according to your personal preferences or according to the current POS theme.

Text Format branch

Configure this section according to your personal preferences or according to the current POS theme. The text displayed on the button may also be changed, if required.

Icon Setup branch

Configure this section according to your personal preferences or according to the current POS theme.

1. Click Apply and then OK to save changes and close the button configuration screen.

2. Close the Screen Layouts list.

3. Close the Point of Sale Control module.
