# Workstation to cash drawer

### DB-25 Female to DB-25 Male

<figure><img src="https://232896058-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FoJDkfptnj9M2tMkjy5Az%2Fuploads%2FvZ2xY9n1lQbmJhLpqoVX%2Fimage.png?alt=media&#x26;token=7ce029c3-622e-4bb8-b646-0ebda9e221d5" alt=""><figcaption></figcaption></figure>

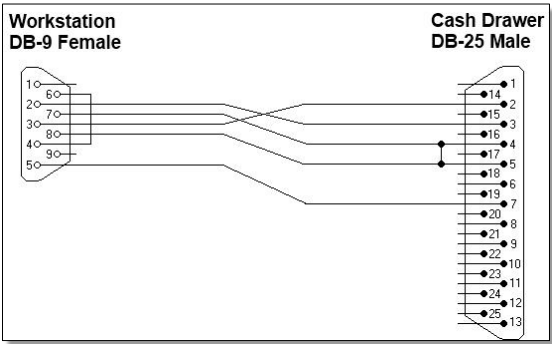

### DB-9 Female to DB-25 Male

<figure><img src="https://232896058-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FoJDkfptnj9M2tMkjy5Az%2Fuploads%2FQjWiRpQi09E2owduuu56%2Fimage.png?alt=media&#x26;token=c5a4f40e-57f6-4dbb-897d-db53b941deb5" alt=""><figcaption></figcaption></figure>
