Redirection Tables

Redirection Tables are used to route printouts so that they print at the appropriate printer in the restaurant. Printer routes can be set by mode. This means that a certain POS workstation can print at one printer in the morning during the breakfast period, and print at another printer during the lunch period or the dinner period.

Prerequisites

Before setting up redirection tables:

• make sure that Logical Printers, Physical Printers and Shared Printers are setup.

• To make use of redirection tables, the option Automatic Redirection Table must be enabled in Point of Sales Control > View > Options > Printing.

• Optionally, the option Redirection table by Revenue Center may be used to control redirection tables by Revenue Center instead of by Mode. This option is also located in Point of Sales Control > View > Options > Printing.

Setting up redirection tables

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)

Maitre'D Logon Screen

1. Start the Point of Sale Control module.

Back-Office Icon - Point of Sale Control

1. Click on the Workstation menu and select the Redirection Table... option.

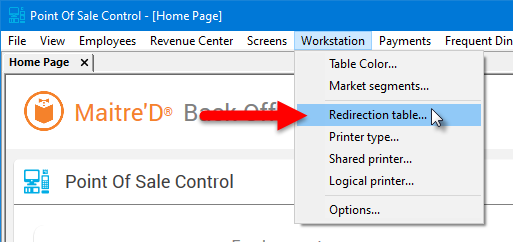

Workstation Menu - Redirection Table

1. The list of available redirection tables will be displayed:

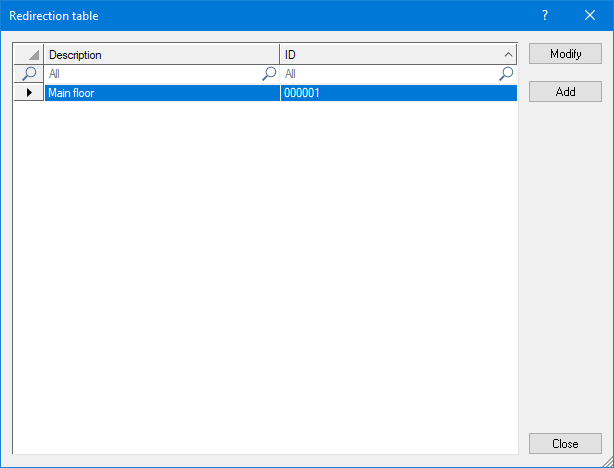

Redirection Table List

Button - Modify

Select an existing Redirection Table and click the Modify button to edit its properties.

Button - Add

Click Add to create a new Redirection Table.

Button - Close

Click Close to exit and return to the Point of Sale Control module.

1. The Redirection Table's settings will be displayed:

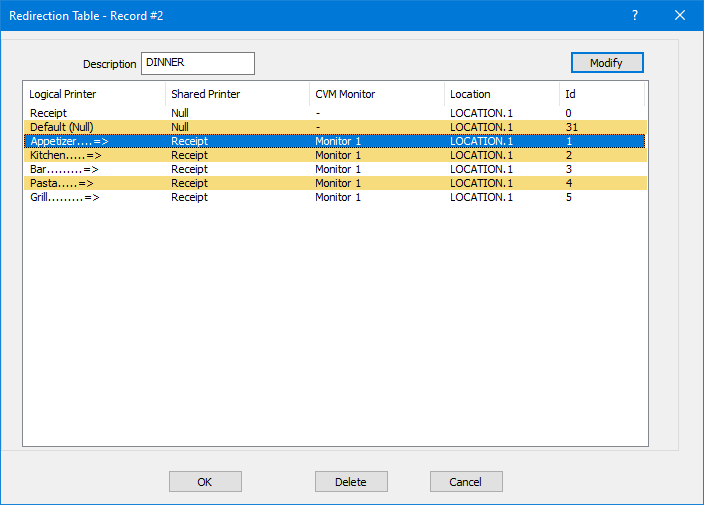

Redirection Table settings

Description

Type a meaningful description for this redirection table.

Button - Modify

Select a logical printer from the table and click the Modify button to edit its properties.

Logical Printer

This column lists all available logical printers. The first two entries (Receipt and Default) cannot be modified, except for KDS IP Redirection and Inventory Location. The other entries in this list are configured in Point of Sale Control > Workstation > Logical Printer...

Shared Printer

This column lists which shared printer is associated with each logical printer.

CVM Monitor

This column lists which KDS monitor is associated with each logical printer.

Location

This column is only available if the Inventory Management module with the Multi-Location option is activated on the Maitre'D license. It lists the Inventory Locations from which inventory quantities should be depleted for each logical printer.

Id

This column lists the internal ID associated with each logical printer.

Button - OK

Click OK to save changes and return to the list of Redirection Tables.

Button - Delete

Click Delete to delete this Redirection Table. A confirmation dialog will be displayed before the redirection table is effectively deleted.

Button - Cancel

Click Cancel to exit this screen without making any changes.

1. Select a Logical Printer from the list and click the Modify button to change its properties.

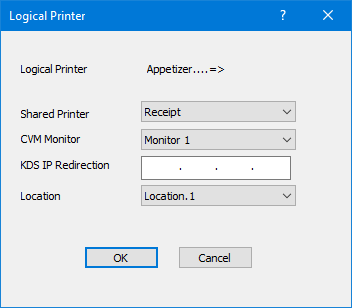

Logical Printer Settings

Logical Printer

This field displays the name of the Logical Printer being modified.

Shared Printer

From the drop-down list, select the Shared Printer to use with this Logical Printer.

CVM Monitor

From the drop-down list, select the KDS Monitor to use with this Logical Printer.

KDS IP Redirection

If required, enter the IP address to use for redirections.

Location

If the Inventory Management module with the Multi-Location option is available, select the location from which Inventory Quantities will be depleted when using this Logical Printer.

1. Click OK to save changes and return to the redirection table. The changes will appear on the screen:

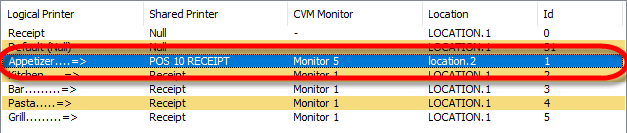

Logical Printer Changed

1. Repeat steps 6 and 7 for each Logical Printer.

2. Once all the Logical Printers have been configured, click OK to save changes and return to the list of redirection tables.

Create as many redirection tables as required for your use case.
