Advanced POS Workstation

The Maitre’D Advanced POS User Interface (UI) elevates the merchant experience with Maitre’D by enhancing the look and feel of both the front and the Back-Office with a new intuitive and modernized interface. It not only offers a modernized menu and back-of-house editor experience, but new screens for all the Maitre'D features you love, like staff time and attendance and financial reporting.

The Maitre’D Advanced POS User Interface (UI) is designed to take advantage of modern POS hardware featuring high resolution displays and multi-touch capability. High graphic quality is achieved by improving the resolution of the POS user interface, and by enabling support for most modern image formats, including Scalable Vector Graphics (*.svg), which provides outstanding image quality at any resolution. It provides a visually appealing interface for order taking with light and dark mode and a modernized editor experience for Back-Office operators.

Compared to the Legacy Point of Sale Interface, the Advanced Point of Sale User Interface uses modern graphics and displays more information to the user.

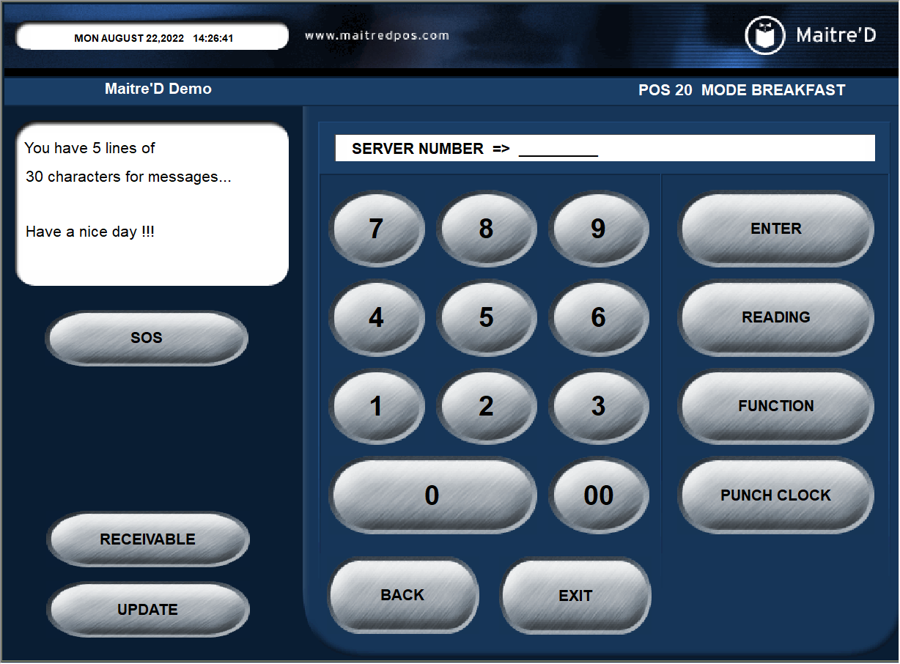

Legacy POS

Advanced POS User Interface

The Advanced Point of Sale User Interface can be used in light mode for well-lit areas, or in Dark mode to reduce eye strain and provide better contrast.

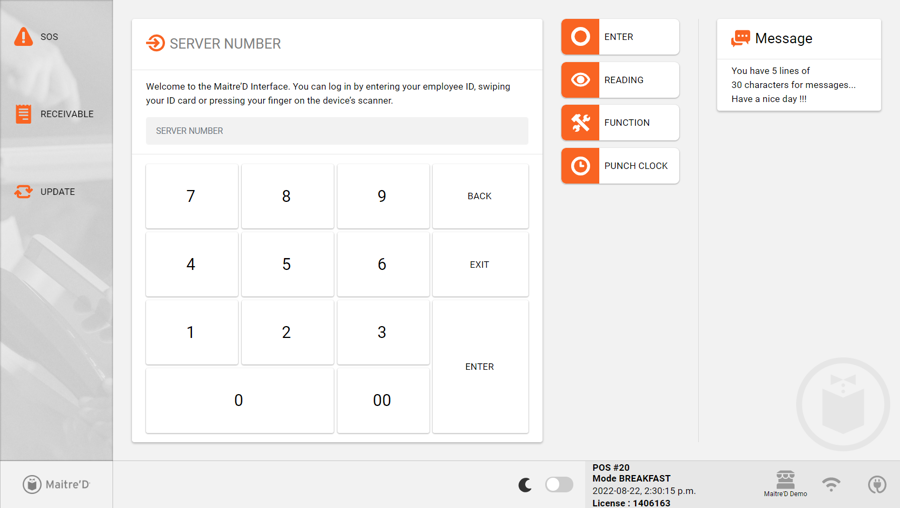

Light mode

Dark mode

The Advanced POS User Interface comes with a matching Advanced Preferential Screen and Screen Layout Setup interface to improve the user-experience when setting up screens.

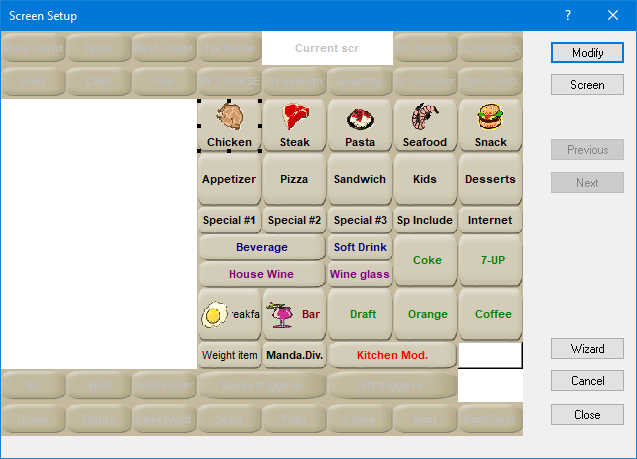

Legacy Preferential Screen Setup

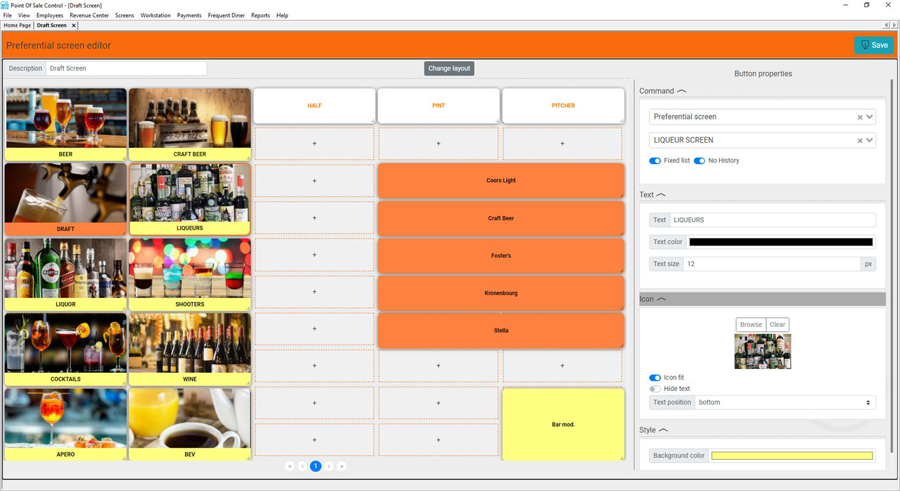

Advanced Preferential Screen Setup

Buttons are easier and faster to configure with the Advanced preferential screen setup interface. Button properties are on the same screen as the screen layout or preferential screen, allowing changes to be seen in real time.

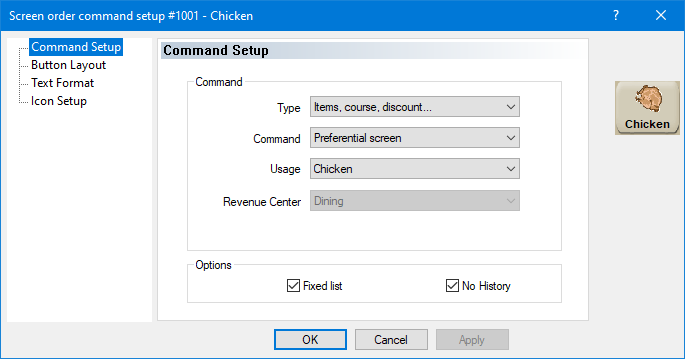

Legacy Button Properties

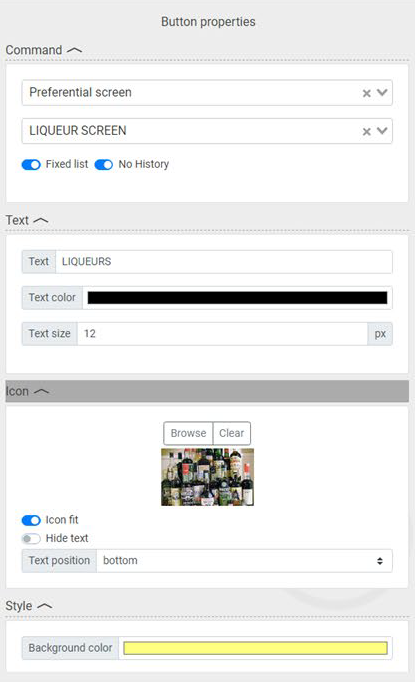

Advanced Button Properties

Maitre'D version 7.08.000.430 or later.

Maitre'D License

Valid Maitre'D Software-as-a-Service (SaaS) license with Embedded Maintenance Program (EMP).

Hardware

See Hardware Requirements for Advanced POS User Interface.

Operating System

Microsoft Windows 10 or later, both for the Maitre'D Back-Office and POS workstations.

Please consult Operating System Requirements for detailed patch level and supported editions.

The Maitre'D Advanced POS UI comes with a selection of generic, royalty-free images and graphics for your convenience. You can also use your own custom images in most common formats. If you wish to use custom-branded images, have them in-hand before configuring the Maitre'D Advanced POS UI.

The Maitre'D Advanced POS UI supports the following image formats:

• Scalable Vector Graphics (*.svg)

• Portable Network Graphic (*.png)

• Joint Photographic Experts Group (*.jpg or *.jpeg)

PayFacto does not provide any form of assistance or training in the creation or manipulation of graphics or image files. The information below is provided to give users a better understanding of each supported image format and the circumstances under which each format is better suited.

SVG images are defined in a vector graphics format and stored in XML text files. SVG images can thus be scaled in size without loss of quality, and SVG files can be searched, indexed, scripted, and compressed. The XML text files can be created and edited with text editors or vector graphics editors, and are rendered by the most-used web browsers.

Advantages

File size

SVG files are typically very small, since they are defined in XML text files. Also, being infinitely scalable, the file size will not change regardless of the image's actual size on the screen.

Scalability

SVG files can be scaled (resized) without any loss in quality. Compared to PNG or JPG, the SVG will not get "blockyness" as it is scaled up.

Consider the images below as examples. Feel free to resize your browser window and zoom in and out to see the effects of scaling. Notice how the SVG image (on the right) borders remain sharp and well-defined regardless of its size on the screen. At the same time, see how the PNG (on the left) becomes "blocky" and blurred as its size increases.

PNG file

SVG file

Disadvantages

Editing

Editing svg files requires specialized tools which are designed to work with vector graphics, such as Adobe Illustrator, Inkscape or GIMP. Text editors such as Notepad++ may aslo be used, but this requires deep knowledge specific to the XML syntax of SVG files. In general, working with vector graphics is very different than rasterized images, so there could be a significant learning curve depending on your current knowledge and skill level.

not very suitable for pictures

SVG files are typically used for simple 2d graphics, such as logos and text. While it is possible to convert a picture from a rasterized format (JPG or PNG), there are no real advantages in doing so. In fact, this often results in a loss of quality and artefacts in the converted image. Converted images may look "cartoon-ish" and in worst cases may become blurred beyond recognition.

JPG file (original)

SVG file (Converted from JPG)

The PNG file format is widely used on websites to display high-quality digital images. Created to exceed the performance of GIF files, PNGs offer not just lossless compression, but also a much broader and brighter color palette. It’s a particularly popular file type with web designers because it can handle graphics with transparent or semi-transparent backgrounds. The file format isn’t patented, so PNGs can be opened using any image editing software without the need for licensing.

Advantages

Picture quality

PNG's are suitable for high-quality pictures, like photographs of food products or sales items available on the menu.

Transparency

PNG's support transparency, so they can be placed against any background without looking awkward.

To illustrate the difference, consider the examples below. Both images are identical sizes (640 x 464 pixels). Both images were placed against the same dark gray background which extends 10 pixels past the image's boundaries on all sides (660 x 484 pixels)

the hamburger in the PNG file (on the left) was created against a transparent background, which blends in with the dark gray background we placed behind the image. The same image was then converted in jpg format and is displayed on the right. Since the jpg format does not support transparency, the image's background is displayed as white space around the hamburger, which contrasts with the dark gray background bleeding on all sides.

PNG file with transparency

JPG file (does not support transparency)

Editing

PNG's can be edited with a wide variety of free image editors, including Microsoft Paint, Paint.NET, GIMP and many others. The manipulation of PNG files is generally straightforward and most of the required skills can be acquired through free online tutorials.

Lossless compression

PNG files can be opened, edited and saved as many times as necessary without losing quality due to successive compression.

Disadvantages

Not scalable

A low-resolution PNG file will not scale very well. To display a PNG on a large portion of a screen, a larger image is needed, which will dramatically increase the file size.

File size

At the same resolution and comparable image quality, a PNG will produce a larger file size than JPG.

JPEG is a commonly used method of lossy compression for digital images, particularly for those images produced by digital photography. The degree of compression can be adjusted, allowing a selectable tradeoff between storage size and image quality.

Advantages

Picture quality

JPG's are suitable for high-quality pictures, like photographs of food products or sales items available on the menu.

File size

At the same resolution and comparable image quality, a JPG will produce a smaller file size than PNG.

Editing

JPG's can be edited with a wide variety of free image editors, including Microsoft Paint, Paint.NET, GIMP and many others. The manipulation of JPG files is generally straightforward and most of the required skills can be acquired through free online tutorials.

Disadvantages

Not scalable

A low-resolution JPG file will not scale very well. To display a JPG on a large portion of a screen, a larger, higher resolution image is needed, which will dramatically increase the file size.

Transparency

JPG's don't support transparency.

Compression

Understanding the effects of compression on JPG files can be quite daunting. Every time a JPG file is opened, modified and saved, the file is re-compressed, resulting in a compounded loss of quality compared to the original image.

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)




2. Start the Point of Sale Control module.


3. Click on the View menu and select the Options... option.

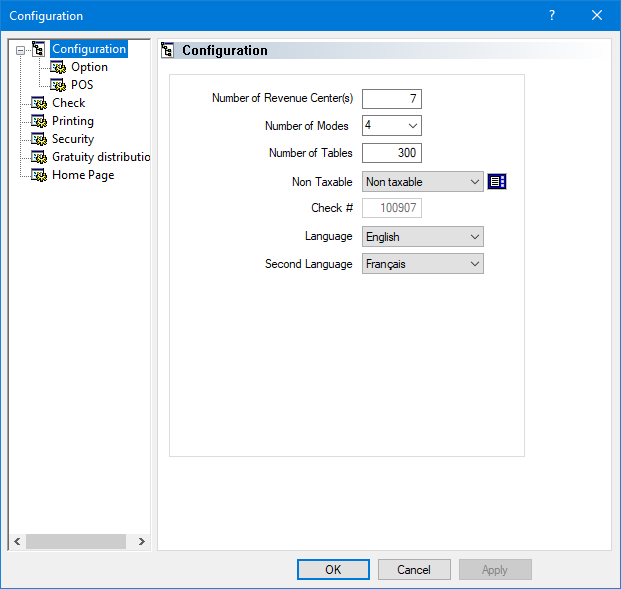

4. The Point of Sale Control module's options window opens on the Configuration branch.


5. Click on the POS sub-branch and enable the Use advanced POS UI option.

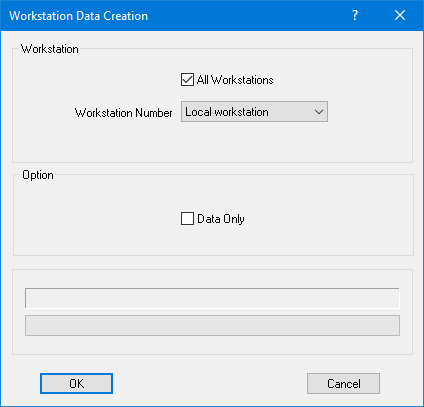

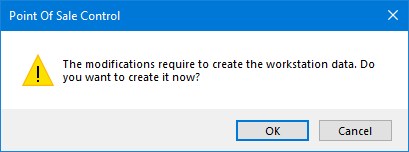

6. Click OK. You will be asked to create the workstation data. Click OK to proceed. The entire process could take from a few seconds to a few minutes, depending on your system's performance and the number of workstations on your Maitre'D license.
7. The options window will close, and you will be back to the Point of Sale Control module.

At this point, the POS workstations should automatically restart with the Advanced POS User Interface.

Legacy POS User Interface

Advanced POS User Interface

By default, the POS User Interface is configured in right-handed mode, as approximately 90% of the world's population is right-handed. This procedure shows how to configure the POS User Interface to left-handed mode for a single employee. Repeat this procedure for every left-handed employee.

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)
2. Start the Point of Sale Control module.


3. Click on the Employees menu and select the Employees... option.
4. The list of employees will be displayed. Select an employee from the list and click the Modify button.

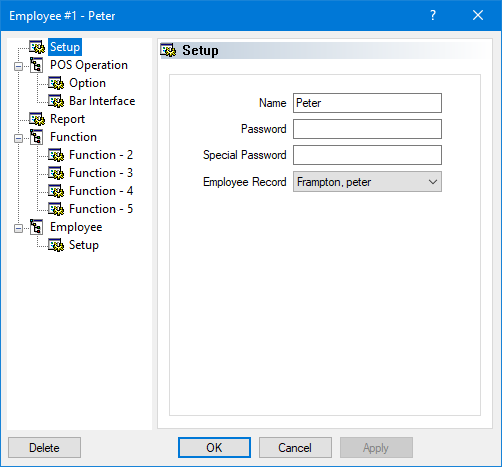

5. The employee's properties will open on the Setup branch.

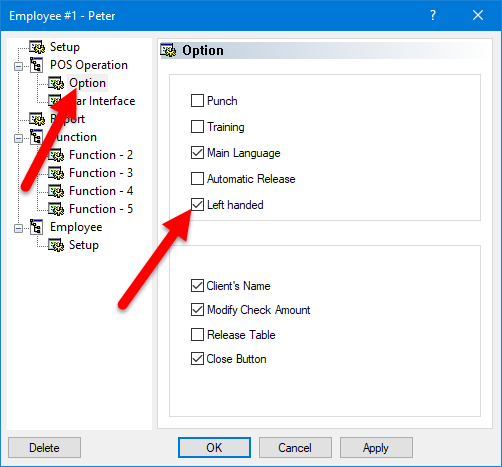

6. Click on the Option sub-branch, located under POS Operation. Enable the Left handed option and click OK to save changes and close this window.
7. You will be back at the employee's list. Repeat this process for all left-handed employees.
8. Close the list of employees when done. You may also close the Point of Sale Control Module and logout of the Maitre'D Back-Office.

The next time these employees use the POS, they will automatically be using the left-handed interface. The screenshots below illustrate the difference between right-handed and left-handed interfaces.

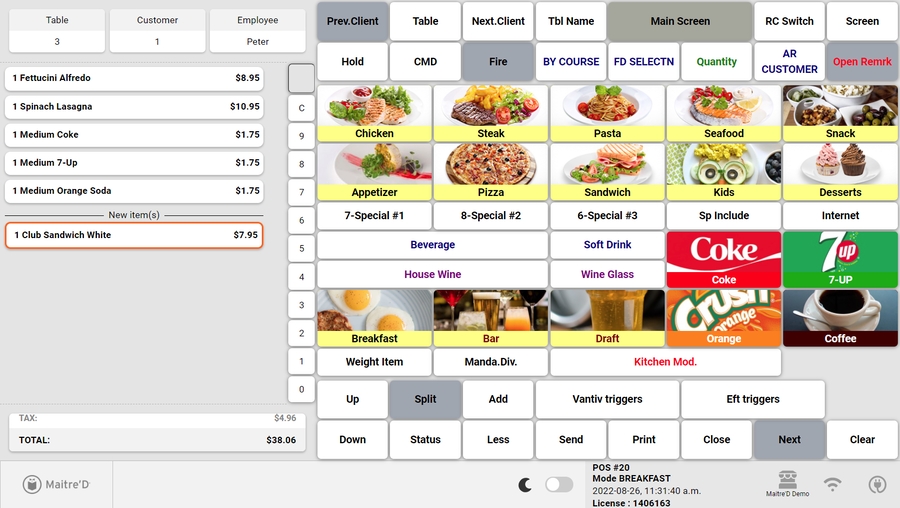

Right-Handed POS Interface (Default)

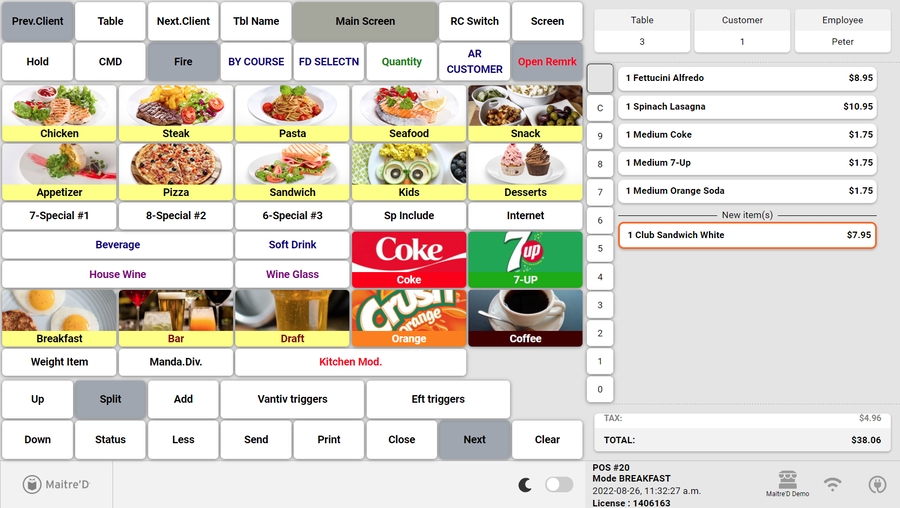

Left-Handed POS Interface

By default, the Advanced POS User Interface uses Light Mode. This configuration is at the workstation level, therefore every workstation can be configured independently. Also, a manual override setting is available on the POS screen, allowing employees to toggle between Light and Dark modes on the fly.

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)
2. Start the Point of Sale Control module.


3. Click on the Workstation menu and select the Options... option.
4. The list of available workstations will be displayed. Select the workstation for which you wish to assign redirection tables and click the Modify button.

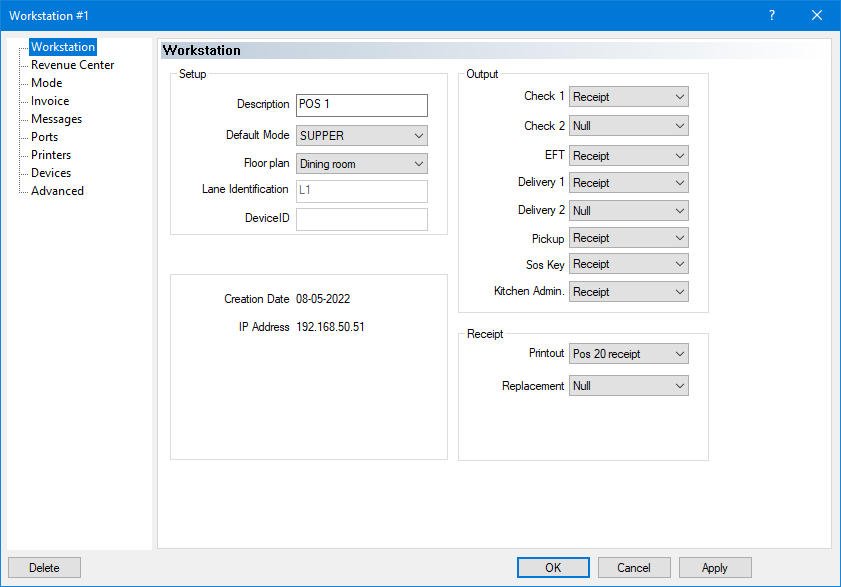

5. The workstation's properties open on the Workstation branch.

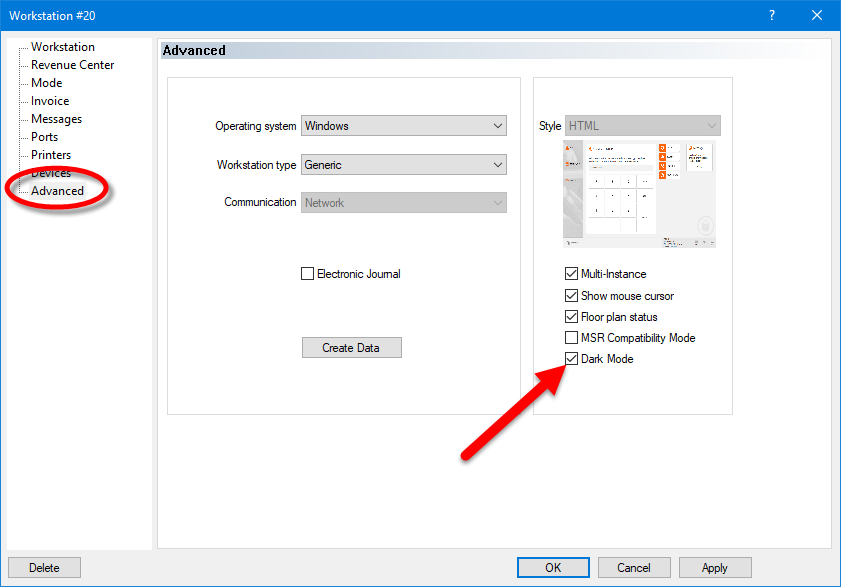

6. Click on the Advanced branch and enable the Dark Mode option.

   IMPORTANT! This option determines the default behaviour of the workstation. With Dark Mode enabled, the workstation will always start in Dark Mode after a reboot or after recreating workstation data.

   Users can always override this configuration by using the Light / Dark toggle switch as explained further below.

7. Click OK. The workstation options window will close and bring you back to the list of workstations.

8. Repeat this process as necessary for all workstations which needs to use Dark Mode by default.

9. Once all workstations have been configured, you may close the workstation's list, close the Point of Sale Control module, and logout of the Maitre'D Back-Office.

The workstations will automatically update to Dark Mode as configured:

Light mode

Dark mode

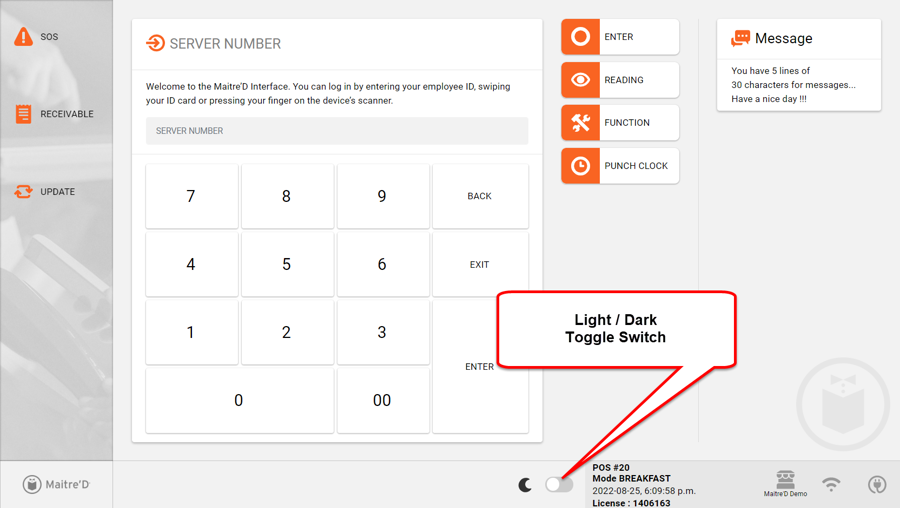

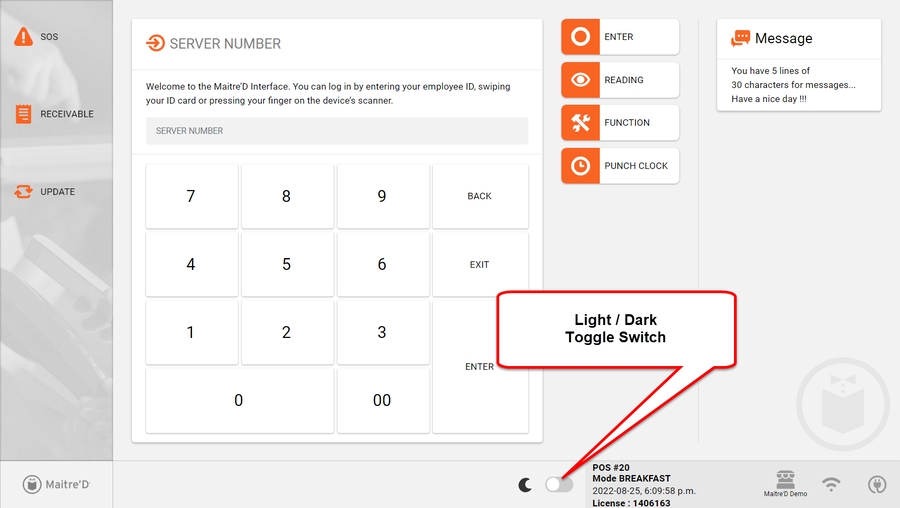

Light Mode / Dark Mode toggle switch

Changing to Dark Mode in the Maitre'D Back-Office determines the default behaviour of the workstation. However, it is always possible for the user to toggle between Light Mode and Dark mode based on personal preferences.

To toggle between Light and Dark modes, simply press and hold the toggle switch for 2 to 3 seconds. A circle animation will appear around the switch, and the display mode will change once the circle is completed.

Toggle in Light Mode

Press and hold

Toggle in Dark Mode

By default, the Advanced POS User Interface uses a static screen layout. This configuration is global, therefore it will apply to all the workstations on your Maitre'D POS system. Here is how to enable the Hidden Screen Layout:

Stop the Maitre'D Back-Office Server and close applications:

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)
2. Start the Server Control module.

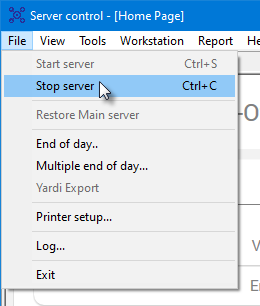

3. Click on the File menu and select the Stop Server option.
4. Once the server is stopped, close any open modules and logoff from the Maitre'D Back-Office.



Edit the BO.INI file

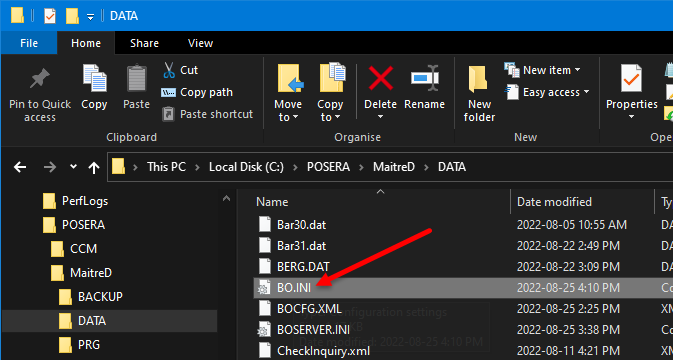

1. Using FIle Explorer, browse to C:\POSERA\MaitreD\DATA and locate the BO.INI file.
2. Open the BO.INI file using any text editor, such as Notepad or Notepad++.

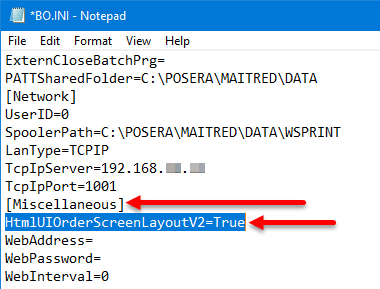

3. Locate the [Miscellaneous] Section. Then, add the following line under the [Miscellaneous] section:

   HtmlUIOrderScreenLayoutV2=True

   NOTE: Setting this value to "True" enables the Hidden Screen Layout. Setting it to "False" uses the default Static Screen Layout. Omitting the line altogether is the same as setting it to "False".

4. Save your changes to the BO.INI file and close it.

5. You may also close the File Explorer window.

Make Workstation Data and Start the Back-Office server

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)
2. Start the Server Control module.

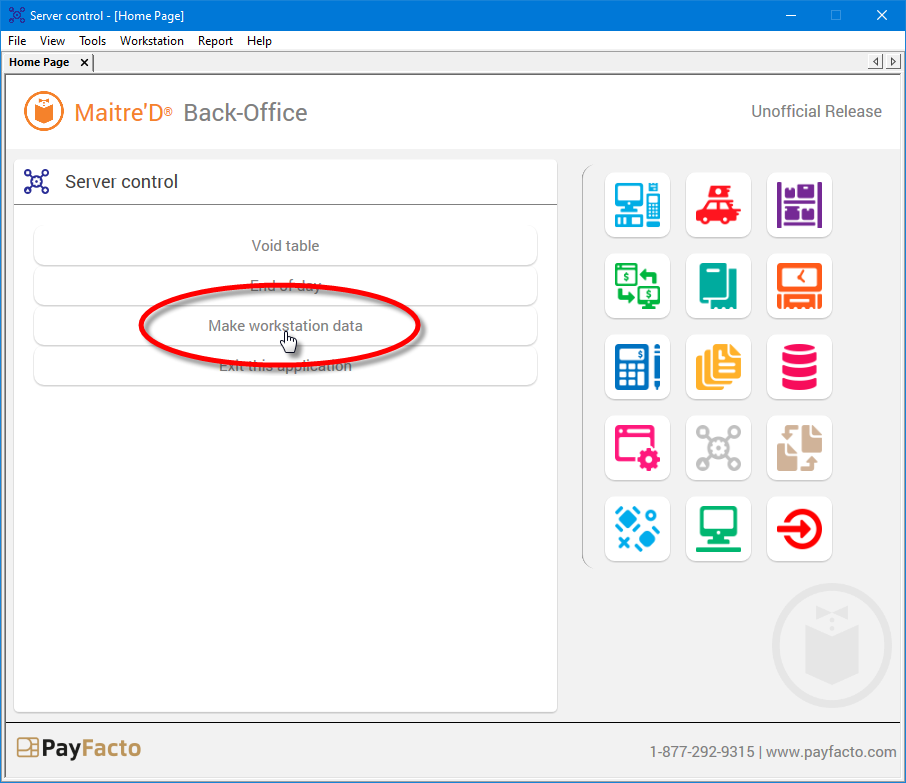

3. Click on the Make Workstation Data quick link.

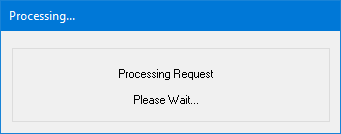

4. Wait for the process to complete. The entire process could take from a few seconds to a few minutes, depending on your system's performance and the number of workstations on your Maitre'D license.
5. Click on the File menu and select the Start Server option.
6. Once the server is started, you may close any open modules and logoff from the Maitre'D Back-Office.



Start the POS Workstations. The screenshot below illustrate the difference between the Static and Hidden screen layout.

Advanced POS User Interface with Static Layout

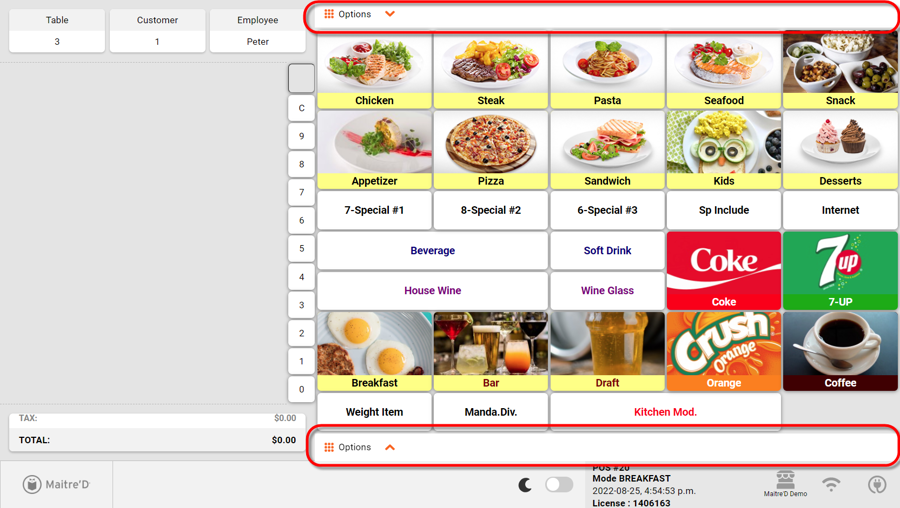

Advanced POS User Interface with Hidden Layout

To access the top or bottom layout buttons on the Hidden Screen Layout interface, touch either the top or bottom Option keys, respectively. Layout buttons will appear as an overlay on top of the preferential screen buttons.

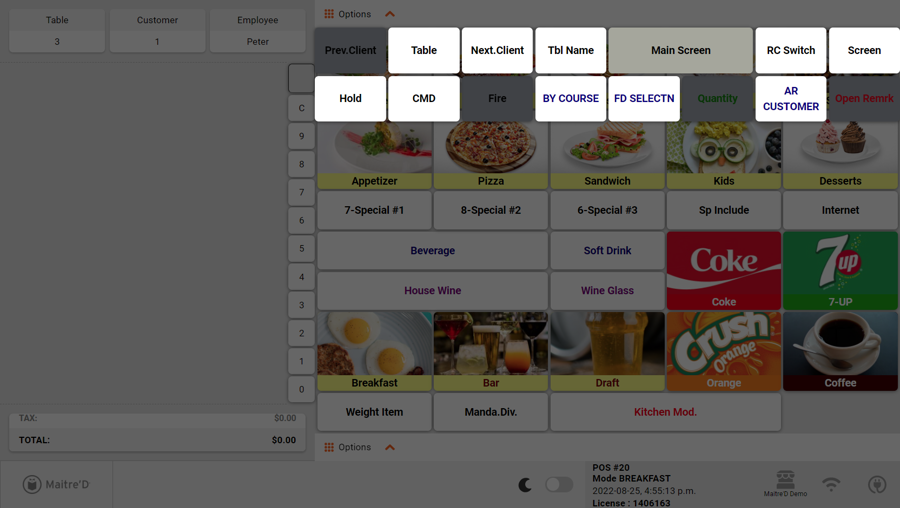

Top layout buttons appearing as overlay:

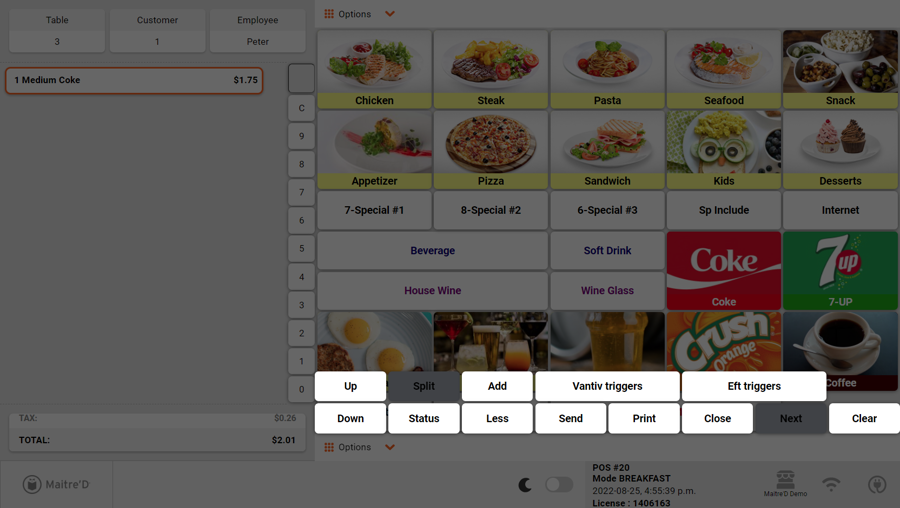

Bottom layout buttons appearing as overlay:

This article describes how to enable the UI Debugger Tool for the Advanced POS User Interface. This tool is used internally by PayFacto when troubleshooting issues with the Advanced POS User Interface. In a nutshell, this allows a web browser to connect to the Workstation's interface to see error messages that the POS is normally unable to display by itself.

IMPORTANT! Use this functionality in a lab environment and for troubleshooting purposes only. Please contact PayFacto support for further assistance using this feature.

By default, the UI Debugger tool is disabled. This configuration is global, therefore it will apply to all the workstations on your Maitre'D POS system. Here is how to enable it:

Stop the Maitre'D Back-Office Server and close applications:

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)
2. Start the Server Control module.


3. Click on the File menu and select the Stop Server option.
4. Once the server is stopped, close any open modules and logoff from the Maitre'D Back-Office.



Edit the BO.INI file

1. Using FIle Explorer, browse to C:\POSERA\MaitreD\DATA and locate the BO.INI file.
2. Open the BO.INI file using any text editor, such as Notepad or Notepad++.

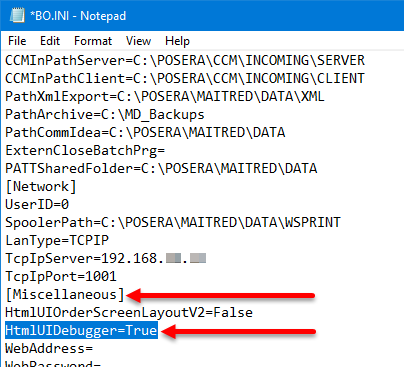

3. Locate the [Miscellaneous] Section. Then, add the following line under the [Miscellaneous] section:

   HtmlUIDebugger=True

   NOTE: Setting this value to "True" enables the UI Debugger. Setting it to "False" turns it off. Omitting the line altogether is the same as setting it to "False".

4. Save your changes to the BO.INI file and close it.

5. You may also close the File Explorer window.

Make Workstation Data and Start the Back-Office server

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)
2. Start the Server Control module.


3. Click on the Make Workstation Data quick link.
4. Wait for the process to complete. The entire process could take from a few seconds to a few minutes, depending on your system's performance and the number of workstations on your Maitre'D license.
5. Click on the File menu and select the Start Server option.
6. Once the server is started, you may close any open modules and logoff from the Maitre'D Back-Office.



Start the POS Workstations. There is no visible difference to the Advanced POS User Interface when the UI Debugger is running.
