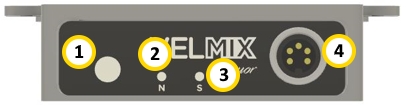

The Velmix LQ controller (232 or IP) includes the following components:

Multifunction button N - Ethernet network status LED (not used with Velmix LQ RS232) S - LED status indicator Activator connector

The Velmix LQ controller components offer different functions and information, listed below:

• Multifunction button -- depending on the Veloce POS software configuration, the button can be used to:

  • Pause during long pours.

  • Stop the pour.

  • Calibrate the stoppers.

• Ethernet network status indicator

  • Off : Not used with the Velmix LQ 232.

  • Solid red: No Ethernet connection.

  • Flashing yellow: In pairing mode, waiting for a DHCP IP address.

  • Flashing green: Pairing mode, IP address obtained, UDP broadcast started for POS detection.

  • Flashing blue: Pairing mode, UDP broadcast response by POS obtained, TCP/IP port open, waiting for connection on TCP/IP port by POS.

  • Solid blue: The Veloce POS is connected to the Velmix LQ IP's TCP/IP port.

• Operating status indicator

  • Solid blue: The Velmix is at rest, with no stopper in the activator.

  • Solid green: A valid stopper is in the activator.

  • Solid red: The stopper is not recognized by the Veloce POS.

  • Flashing green: The activator is active during a pour.

  • Flashing red: Communication problem between the Vemix LQ and Veloce POS.

• Activator connector -- activator connection.
