Connexions

Connexions

Before installing the connections to your Velmix LQ, make sure you have all the parts you need and that your workspace is clear of any items not related to the Velmix LQ.

NOTE : All connectors have orientation guides, both on the cable connectors and on the housing connectors, as shown below: Guides d'orientation

To connect your Velmix LQ :

  1. Position the Velmix controller so that you can view it from above.

Velmix vue de haut

  1. Insert the power connector (AVP-002115) with the orientation guide downwards into the Velmix's left rear connector and turn the connector coupling ring counter-clockwise until you feel the mechanism lock into place.

Connexion AVP-002115

  1. Do the same for the RS232 or Ethernet communication cable with the right rear connector.

Connexion AVP-002113

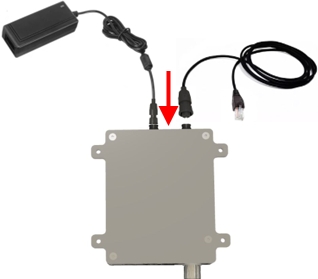

Connexion AVP-002118

  1. If not already installed, insert the activator connector (AZV-200010) and turn the coupling ring firmly clockwise.

Connexion AZV-200010
