Assign a Payment Terminal to POS Workstation

Assign a Payment Terminal to POS Workstation

Each payment terminal using SecurePay needs to be assigned to a POS Workstation. Note that each POS workstation can only drive one payment terminal, therefore the number of payment terminals using SecurePay shouldn't exceed the number of POS workstations.

The following procedure is required to assign a specific payment terminal to a specific POS workstation in Maitre'D.

---

Procedure

1. Logon to the Maitre’D Back-Office with appropriate credentials. (Distributor or System Owner)

1. Start the Point of Sale Control Module.

1. Click the Workstation menu, and select Options...

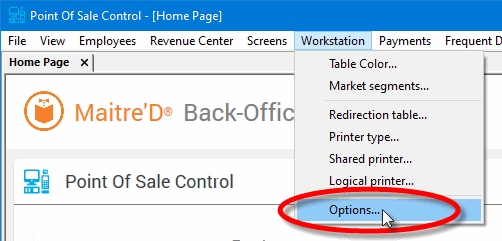

Screenshot - Workstation Options Menu

1. The list of available POS workstations will appear. Select the POS Workstation to which you want to assign a payment terminal and click Modify.

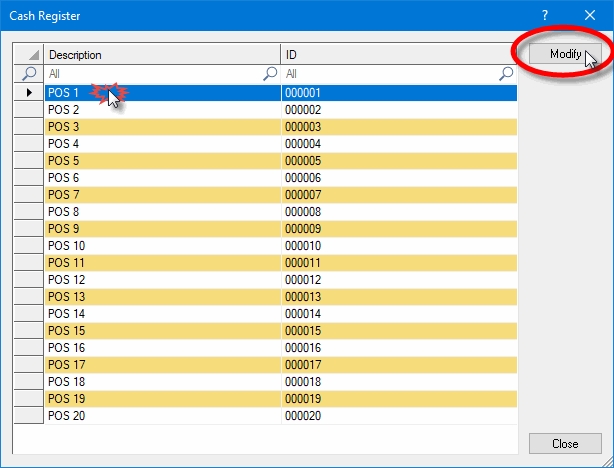

Screenshot - Workstations List

1. The POS workstation's options will appear. Click the Devices branch on the left of the window, then click the Add button to start adding a new device.

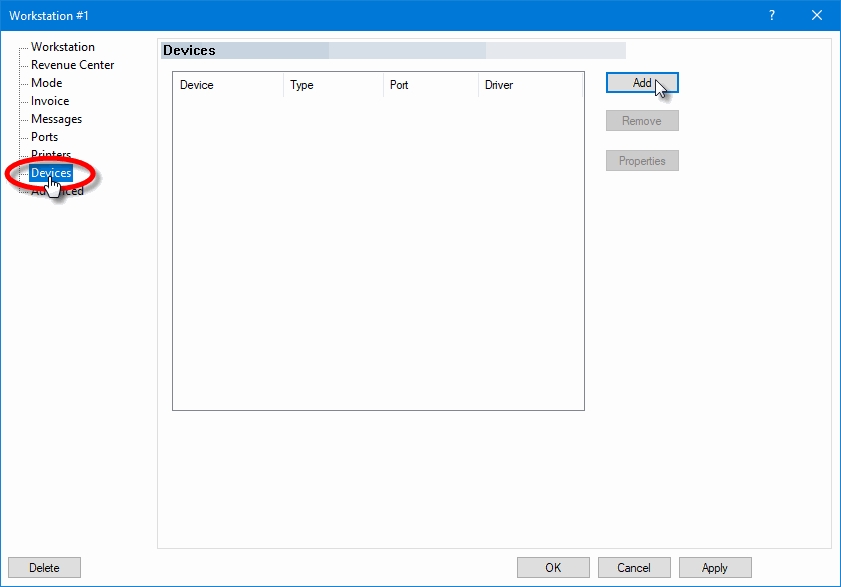

Screenshot - Workstation Options device list

1. In the Add Device dialog, select PIN Pad and click the Setup button.

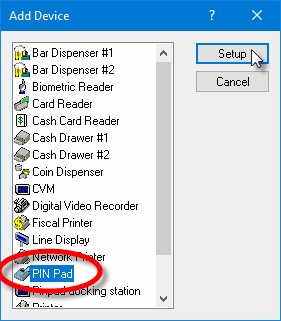

Screenshot - Add Device dialog

1. Setup the device as follows:

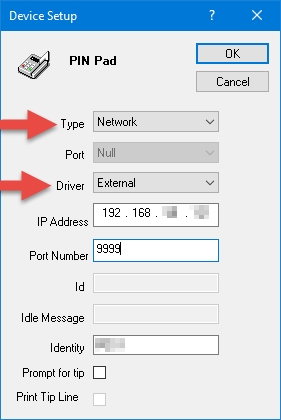

Screenshot - PIN Pad config

Type

Select Network from the drop-down list.

Port

This setting is disabled and cannot be configured. Ignore it.

Driver

Select External from the drop-down list.

IP Address

Enter the IP address of the payment terminal.

Port Number

Enter the TCP port number used by the payment terminal. The default value for SecurePay is 9999.

ID

This setting is disabled and cannot be configured. Ignore it.

Idle Message

This setting is disabled and cannot be configured. Ignore it.

Identity

Enter the payment terminal's identity, which is supplied by the payment processor. This is also referred to as Terminal ID or TID.

Prompt for tip

This option has no effect with SecurePay payment termimals, as it will be overridden by the configuration of the SecurePay application installed on the payment terminal.

Print Tip Line

This setting is disabled and cannot be configured. Ignore it.

1. Click OK on the Device Setup dialog to save your changes. The new device will appear in the list:

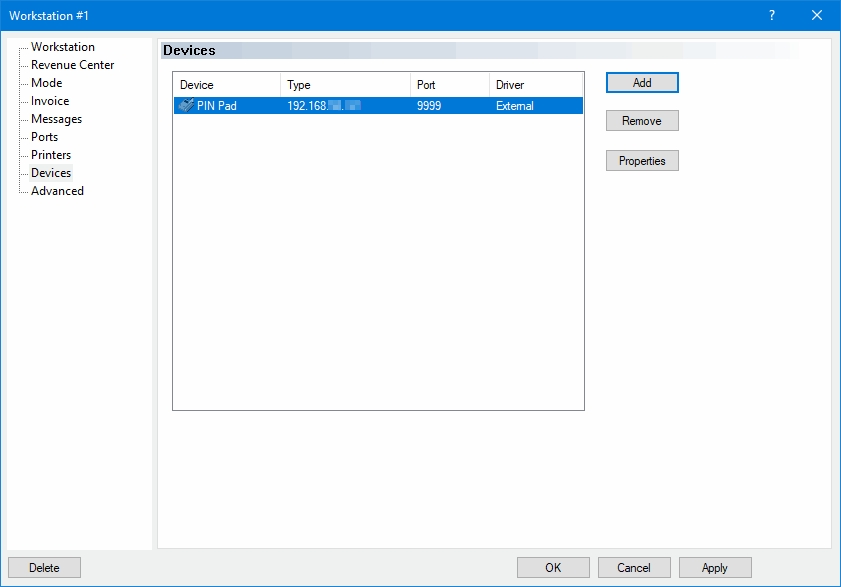

Screenshot - Workstation Options device list Filled

1. Click OK to save changes to the workstation setup and close this window.

2. Close the POS workstation list, or select another POS workstation and repeat steps 4 to 9 to configure more payment terminals.

Make sure that each payment terminal using SecurePay is assigned to a POS workstation.
