Using the Charging Base

Powering the Charging Base On or Off

The multi-terminal charging base has a power switch on the attached power bar, shown below:

• To power on the terminal charging base, make sure the power cord is plugged into a grounded AC outlet and that the power switch is in the On/RESETposition; the switch lights up with a red indicator, as shown below:

To power off the terminal charging base, you can either push the power switch to the OFF position or unplug the power cord from the grounded AC outlet.

---

Charging Terminals

To use the charging base, you need only place the terminal(s) vertically on the base so the printer rests in the cradle at the top of the charging base.

NOTE: The charging base should only be used to charge your terminal(s); it is not designed to be a storage location for the terminal(s).

If the status light remains blue after you place the terminal on the base, the terminal is not seated correctly, and not connecting to the base’s gold charging contacts.

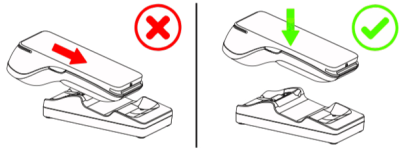

IMPORTANT! Do not slide a terminal onto the base, as it can damage the gold charging contacts. Always place the terminal onto the base vertically, as shown below:

---

LED Status Light

The LED at the bottom edge of the charging base indicates the terminal’s charging status:

LED Color	A920	A920 Pro
Blue: Charging base is plugged in, no terminal connected.
Red/Yellow: Terminal is charging.
Green: Terminal is fully charged.
