Installing the Printer Paper

If the supplied roll of printer paper was not already installed in the terminal when you received it, you will need to install it before you can print any transaction receipts.

To install the printer paper:

1. On the back of the terminal at the top, lift the lever with the contactless logo to unlock and open the printer cover.

1. Place the roll of printer paper in the paper tray, leaving about 2 inches (5 cm) of paper beyond the printer's cutter as shown in the following example:

1. Close the printer cover until it snaps into place and remove any excess paper.

The following illustrations show the location of the main terminal features and hardware:

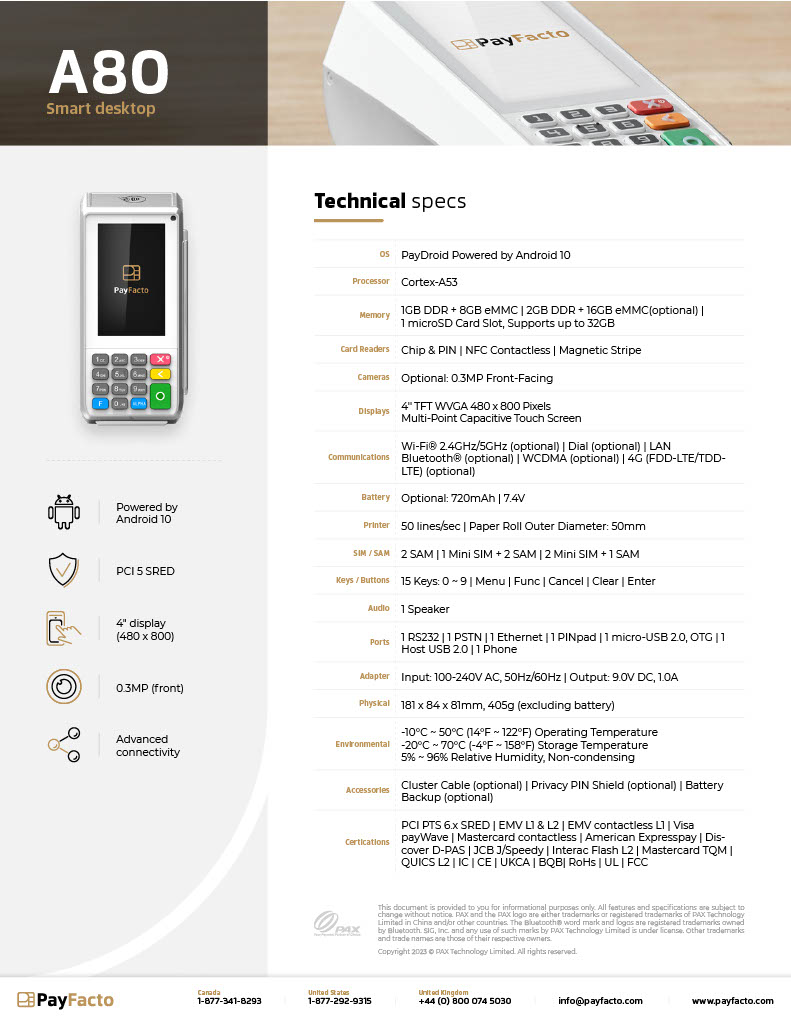

A80 Terminal Overview

This document will introduce you to your payment terminal as well as guide you through the process of preparing and configuring it in order to quickly begin processing payments.

Your PAX A80 payment processing terminal comes with the following:

The RJ-11 cable is not used for terminal communication and may not be included with your terminal.

Introduction

The PAX A80 countertop payment terminal is perfect for retail and bar/restaurant applications. This setup guide describes the following topics:

• Initial terminal configuration

• Activating the terminal

• Working with the terminal

Configuring the Terminal Network Connections

The terminal requires a network connection to communicate with the payment processor server to process transactions.

The PAX A80 is a countertop payment terminal that can connect to wired (Ethernet) and wireless (Wi-Fi) networks.

• Configuring the Terminal Ethernet Connection

• Configuring the Terminal Wi-Fi Connection

Connect the Terminal Cables

There are multiple connection ports on the back of the terminal. Countertop terminals generally require AC power and Ethernet connections.

Your configuration may also include a connection to a POS system or an additional PIN pad.

Use the diagram on the back of the terminal to determine where to connect the cables that apply to your configuration. The terminal’s connection ports are shown below:

Configuring the Terminal Wi-Fi Connection

This section explains how to enable Ethernet and connect to your network.

To connect to your Ethernet (wired) network:

1. Ensure your network cable is connected in the appropriate connector located on the back of the terminal and make sure the other end of the network cable is connected to a network jack or hub.

2. On the terminal’s main screen, touch the Settings icon.

3. On the Settings screen, touch the Please Input Password field and use the keypad to type the password: either 9876 or pax9876@@.

4. Touch the checkmark icon on the keypad when you are done and touch OK.

5. In the Wireless & networks section, touch Ethernet.

6. If Ethernet is Off, touch the toggle to turn it on.

7. After you toggle Ethernet to On (or if Ethernet is already on), the connected network settings appear.

8. If necessary, you can change the network connection parameters manually by scrolling to the bottom and touching Ethernet Configuration to select and configure the Connection Type.

1. Touch the Back icon twice to return to the main screen.

There are multiple communication ports on the back of the terminal with cable guides. The diagram on the back of the terminal shows where to connect the communication cables, in addition to AC power.

Terminal Activation

PayFacto uses a self-service terminal activation procedure designed to save time while also providing better security. The new activation procedure applies only to countertop and mobile PAX payment terminals using the Android operating system. The new procedure applies to:

• All new merchants activating their terminals for the first time

• Any existing merchants adding new payment terminals

• Any existing merchants receiving replacement terminals

Overview

After you configure the terminal's network connection(s) and power on the terminal, the procedure comprises of 2 parts:

• Activate the terminal with a One Time Passcode (OTP)

• Set the Administrator and Merchant passwords

Terminal Input Options

The PAX A80 terminal offers an on-screen keypad as well as a physical keypad to enter transaction amounts. Your terminal operators and customers enter information and respond to prompts using either the terminal’s touch screen or physical keypad.

There are three (3) colored function keys on the physical keypad that you can use to confirm, correct, or cancel an operation:

• To confirm an entry, touch OK on the screen or press the green O key

• To correct an entry, touch BACK on the screen or press the yellow < key

• To cancel a function, touch CLEAR on the screen or press the red X key

Activate Terminal

After configuring the terminal’s network connection, you need to start the PayFacto payment application to complete the remaining steps. Terminal activation requires you to input a One Time Passcode (OTP) that PayFacto sends to the email address or telephone number registered to your account.

To activate the payment terminal:

1. Touch the PAYMENT icon on the main screen. The Welcome To Your Payment Terminal screen appears.

1. In the top right corner of the screen, your terminal ID (TID) appears; confirm that the number on the screen matches the TID on the label on the back of your terminal. The TID will not appear on your terminal screen after you complete the activation process.

1. Touch anywhere on the screen to begin the activation process.

2. Touch the desired option to receive the OTP.

Email

Phone Number

1. Touch the Send Code button.

1. If you select Email, look for a message from noreply@payfacto.com.

1. After you receive the 6-digit activation code, use the on-screen keypad to enter the code on the terminal screen.

1. If you enter the code incorrectly, a red exclamation appears to indicate that the code is incorrect.

1. Re-enter the code, or touch Resend Code to obtain a new OTP.

2. After you enter the OTP correctly, the payment application displays the Set Administrative Password screen to configure your terminal passwords.

Configuring the Terminal Display Language

By default, the terminal displays all information in English. This procedure explains how to change the terminal’s display language if necessary.

To change the terminal display language:

1. On the terminal’s main screen, touch the Settings icon.

2. On the Settings screen, touch the Please Input Password field and use the keypad to type the password: either 9876 or pax9876@@.

3. Touch the checkmark icon on the keypad when you are done and touch OK.

4. Scroll to the Personal section and touch Language & input.

5. Touch Language.

6. Scroll to and touch the desired language.

7. Touch the Back icon twice to return to the main screen.

Replacing the Printer Paper

The terminal uses 2 ¼” or 58mm thermal paper rolls to print transaction receipts.

To replace the printer paper:

1. On the back of the terminal at the top, lift the lever with the contactless logo to unlock and open the printer cover.

1. Place the roll of printer paper in the paper tray, leaving about 2 inches (5 cm) of paper beyond the printer's cutter as shown in the following example:

1. Close the printer cover until it snaps into place and remove any excess paper.

Introduction

This guide will explain how to install the cable attachment bracket for the PAX A80 terminal (part number AZP-310006) designed to prevent the accidental disconnection of cables from the terminal.

The topics covered in this guide include:

Preparing the Terminal

Before you can install the cable attachment to the PAX A80 terminal, you must prepare the terminal by doing the following:

1. Power off the terminal by pressing and holding the red X key on the physical keypad.

1. Turn the terminal over and remove all cables from the terminal's communication ports.

Powering the Terminal On or Off

To power the terminal on or off, press and hold the red X key on the physical keypad.

Set Passwords

To prevent unauthorized individuals from changing the terminal’s configuration, you need to set the Administrator and Merchant passwords. These passwords restrict access to certain functions on the terminal.

When setting your passwords, you must respect the following parameters:

• Passwords must be 6 characters long

• The Administrator and Merchant passwords cannot be the same (can’t match)

• You cannot use the same digit 6 times consecutively (for example: 111111 or 777777)

• You cannot use 6 consecutive numbers, either ascending or descending (for example: 123456 or 987654)

To set your Administrator and Merchant passwords:

1. On the Set Administrative Password screen, use the on-screen keypad to enter a 6-digit password in the Admin Password field and touch the Next icon on the keypad.

2. On the Confirm Administrative Password screen, re-enter the password in the Admin Password field and touch the Next icon on the keypad.

3. On the Set Merchant Password screen, use the on-screen keypad to enter a 6-digit password in the Merchant Password field and touch the Next icon on the keypad.

4. On the Confirm Merchant Password screen, re-enter the password in the Merchant Password field and touch the Next icon on the keypad.

Your payment terminal is now ready for use.

Configuring the Terminal Wi-Fi Connection

This section explains how to turn Wi-Fi on and connect to your network.

To connect to your wireless network:

1. On the terminal’s main screen, touch the Settings icon.

2. On the Settings screen, touch the Please Input Password field and use the keypad to type the password: either 9876 or pax9876@@.

3. Touch the checkmark icon on the keypad when you are done and touch OK.

4. In the Wireless & networks section, touch Wi-Fi.

5. If Wi-Fi is Off, touch the toggle to turn it on. If Wi-Fi is already on, a list of available networks appears.

6. From the list of available networks, touch the name of the network you want to connect to.

7. Enter the password for the selected network and touch CONNECT.

1. After the terminal displays Connected for the selected network, touch the Back icon to return to the Settings screen.

2. Touch the Back icon again to return to the main screen.

Cable Installation

After you secure the T bracket to the terminal, you must insert the cables. This procedure explains how to install and secure the AC adapter and Ethernet cables; if you have additional cables, connect them to the appropriate port and use the same method to secure them in place.

To install and secure the cables:

1. Beginning with the AC adapter, inserting it in the terminal's cable guide on the left and connect the adapter to the Power port.

1. Insert the Ethernet cable in the terminal's cable guide on the right and connect it to the LAN port.

1. When the cables are properly seated in their ports, gently pull on the cables to remove any excess cable that is higher than the plane of the T bracket.

1. Place the 3-hole metal bracket over the cables, aligned with the screw holes in the T bracket and secure it in place using a Phillips head screwdriver to insert the two short screws.

1. Turn the terminal over and power on the terminal. The completed assembly should resemble the following:

Card Payment Options

There are three (3) ways for a customer to use their payment card with the terminal:

Installing the T Bracket

The A80 cable attachment is anchored by a T bracket that keeps the attached cables from being accidentally disconnected .

To install the T bracket on the terminal:

1. With the terminal turned over, insert the T bracket into the guides on the underside of the A80 terminal.

1. Slide the T bracket up by pushing it from the bottom towards the top of the terminal.

Securing the T Bracket to the Terminal

To prevent the T bracket and cables from sliding off the terminal, you must next secure the T bracket to the terminal.

To secure the T bracket to the terminal:

1. Place the short metal bracket at the top of the T bracket and insert the long screw at the opening near the top of the terminal.

1. When the end of the long screw comes out of the bottom of the T bracket, place the metal washer over the screw and then thread the thumb nut onto the end of the screw.

1. Using a Phillips head screwdriver, tighten the screw securely (but not excessively) into the thumb nut.
