The Secure Payment App to app module provides payment processing to merchants who use a non-PayFacto terminal payment application. The App to app module is different from the SecurePay, SecureTable, and Gateway modules as there is no communication between the Point of Sale (POS) system and the payment terminal.

Operation of the App to app module more closely resembles the Payment module in standalone mode. The merchant enters the amount of the sale on a third-party terminal application and then the App to app module receives the sale information and processes the sale using the PayFacto servers.

The interface of the third party terminal application used to enter the sale amount can be (and likely is) different from the Secure Payment interface. Any amount for tip, cashback, or fees (where applicable) is added using the Secure Payment interface, as is the prompt to present the card and the authorization server results.

What are covered in this guide

Download the PDF

Search in the documentation sections

Terminal Activation

PayFacto uses a self-service terminal activation procedure designed to save time while also providing better security. The activation procedure applies only to counter-top and mobile PAX payment terminals using the Android operating system.

The activation procedure applies to:

• All new merchants activating their terminals for the first time

• Any existing merchants adding new payment terminals

• Any existing merchants receiving replacement terminals

Overview

After you configure the terminal's network connection(s) and power on the terminal, the activation procedure comprises of 2 parts:

Activate Terminal

After configuring the terminal’s network connection, you need to start the Secure Payment application to complete the remaining steps. Terminal activation requires that you input a One Time Passcode (OTP) that PayFacto sends to the email address or telephone number registered to your account.

To activate the payment terminal:

1. Touch the Tap to continue button to begin the activation process.

2. Touch the desired option to receive the OTP.

1. Touch the Send Code button.

4. Re-enter the code and touch the Confirm & activate button, or touch Resend Code to obtain a new OTP.

Set Passwords

To prevent unauthorized individuals from changing the terminal’s configuration, you need to set the Administrator and Merchant passwords. These passwords restrict access to certain functions on the terminal.

When setting your passwords, you must respect the following parameters:

• Passwords must be 6 characters long

• The Administrator and Merchant passwords cannot be the same (can’t match)

• You cannot use the same digit 6 times consecutively (for example: 111111 or 777777)

• You cannot use 6 consecutive numbers, either ascending or descending (for example: 123456 or 987654)

To set your Administrator and Merchant passwords:

1. On the Set admin password screen, use the on-screen keypad to enter a 6-digit password in the Password field.

2. Re-enter the password in the Confirm new password field.

4. On the Set merchant password screen, use the on-screen keypad to enter a 6-digit password in the Password field.

5. Re-enter the password in the Confirm new password field.

Your payment terminal is now activated and ready for use.

Configuration Settings

The Secure Payment application's App to app module has multiple configurable features and functions. The features and functions apply to all Secure Payment modules you may use, including standalone Payment, SecurePay, SecureTable, Gateway, and Gift Cards.

For the App to app module, the feature you will most likely need to configure is tipping (if that applies to your business), but you can access the following :

• Accessing Configuration Settings

• Transaction Management

  • Print Detailed Transaction Report

  • Print Batch Summary Report

• Application Configuration

  • Password

  • Tipping and Cashback

  • Printing Options

• Help and Training Tools

  • Training Mode

  • Getting Support

  • Exiting the Application

  • About Secure Payment

Accessing Configuration Settings

To access the App to app module's configuration settings:

1. Close (or exit from) the third party payment application.

2. If the App to app main screen does not appear automatically, touch the Secure Payment icon on the terminal's main screen.

1. From the App to app main screen, touch the menu icon at the top-left corner of the screen.

1. Enter the merchant password and touch the Confirm button. The Settings page appears.

Transaction Management

When using the Secure Payment application, it is helpful to have a list of processed transactions to ensure your bookkeeping is aligned with your business' sales. The terminal can print transaction reports, allowing you to view either detailed or summary information on the transactions and transaction types in the current batch, if your business uses multiple terminals, you need to print reports on those terminals to view their reports.

Detailed reports display a list of every transaction in the current batch, including date, time, transaction type, payment method, invoice number, and amount. Summary reports group the transactions by card type, displaying the total sales, and the number of transactions.

The terminal’s printer (built-in or external) can print transaction reports for the current batch. For reconciliation purposes, you may want to print a report prior to the automated settlement, but it is not a requirement. Printing reports is meant to assist with your bookkeeping.

The available transaction reports are:

Additionally, you can search for individual transactions using the procedure.

Search for a Transaction

You can search for transactions on the terminal to view the details about one or more transactions. If you have multiple terminals operating under the same merchant ID (MID), all transactions from all terminals appear in the list with the most recent transaction at the top of the list. You can search for transactions in the current (open) batch as well as from previous batches.

To search for a transaction:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

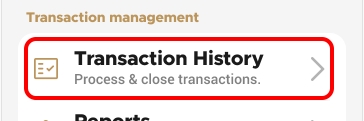

2. In the Transaction management section, touch Transaction History.

1. Touch the Search button.

2. Enter one or more of the following search criteria:

   • An invoice number in the Invoice number field

   • An authorization code in the Authorization code field

   • Touch the Time range field to select a date range for the desired transaction; touch Save to search using the selected date range

3. Touch the Search button. The terminal returns any transaction that meets the selected search criteria.

4. Touch the desired transaction to display the details.

Print Detailed Transaction Report

The detailed report for the current batch of transactions lists each individual transaction’s details. You may want to print the detailed transaction in order to have a printed copy of the transactions prior to processing the the current batch. Printing a detailed report allows you to reconcile each transaction as part of your bookkeeping.

To print a detailed list of transactions for the current batch:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Transaction management section, touch Reports.

1. In the Batch Details section, touch Print Batch Details. The terminal prints the Batch Details Report, listing all transaction details in the current batch for all terminal operators.

2. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to print the detailed transaction report.

Print Batch Summary Report

The summary report for the current batch of transactions allows you to see the totals for each payment method used, including sales, refunds, tips, cashbacks, and fees. You may want to print the summary report to reconcile transactions by payment type as part of your bookkeeping prior to processing the current batch.

To print a summary list of transactions for the current batch:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Transaction management section, touch Transaction History.

3. In the Batch Summary section, touch Print Batch Summary. The terminal prints the Summary Details Report, listing all transactions in the current batch, grouped by card type for all terminal operators.

4. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to print the summary transaction report.

Tipping

You can configure your terminal to add a tip to the total sale. You can also configure cashback options for debit transactions (if supported). The topics covered in this section include:

• Enable Tipping

• Preset Tip Percentage

• Enable Manual Tip Percentage

• Change a Preset Tip Percentage

• Change Tip Preset Text Size

• Enable Tipping Threshold

• Set Tipping Threshold

• Disable Manual Tip Percentage

• Disable Tipping

Enable Tipping

If your business includes the option to tip, you can enable tipping on the terminal, where the customer can add a tip value in addition to the sale. By default, tipping is disabled on the terminal.

To enable tipping in addition to the sale:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Toggle the Tip processing switch to the right.

6. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to enable tipping.

Preset Tip Percentage

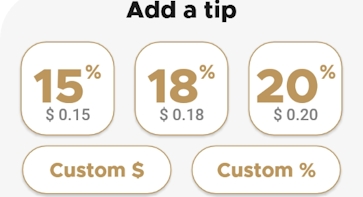

When you enable tipping, the terminal automatically displays three preset percentages (default values are 15%, 18%, and 20%) as options to the customer. The customer can touch one of the preset values or manually enter an amount for the tip.

To view the preset tipping percentages

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

6. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to view the terminal's preset tip percentages.

Enable Manual Tip Percentage

When you enable tip processing, the terminal automatically offers preset percentage values to the customer. You can also offer the opportunity for customers to enter their own percentage value. By default, the manual tip percentage option is enabled on the terminal and applies automatically whenever you activate the tip processing option.

To enable the manual tip percentage option

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

6. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want enable a manual tip percentage.

Change a Preset Tip Percentage

When you enable tip processing, the terminal automatically offers preset percentage values to the customer. By default, the preset percentage values are set to 15, 18, and 20, but you can easily change one or more of these values as needed.

To change a preset tip percentage:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Touch Percentage presets.

6. On the Tip percentage presets screen, touch the tip preset field you want to change (Tip preset no. 1, Tip preset no. 2, or Tip preset no. 3) and replace the current percentage with a new value.

7. Repeat step 7 for any additional percentage preset values you want to change.

8. If you have more than one terminal, repeat steps 1 to 8 for each additional terminal where you want to change the preset tip percentage values.

Change Tip Preset Text Size

When you enable tip processing, the terminal automatically offers preset percentage values to the customer. By default, the preset percentages use the Normal text size to display the values, but you can choose to use Large or Very Large text to suit your requirements.

To change the text size for the preset tip percentages:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Touch Tip presets text size.

6. On the Tip presets text size screen, touch the text size you want to use (Normal, Large, or Very Large).

7. If you have more than one terminal, repeat steps 1 to 7 for each additional terminal where you want to set preset tip percentage text size.

Enable Tipping Threshold

There can be situations where your customers may accidentally enter a manual tip percentage incorrectly and leave a larger tip than planned. By default, the terminal enables a tipping threshold that requires the Merchant password for any tip over 50% of the initial sale amount (for example, a $55 tip on a $100 bill). You can disable or adjust the threshold value if needed.

To enable the tipping percentage threshold

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Touch Tip threshold.

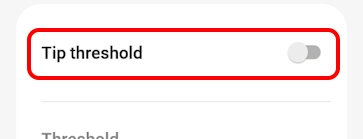

6. On the Tip threshold screen, toggle the Tip threshold switch to the right.

7. If you have more than one terminal, repeat steps 1 to 7 for each additional terminal where you want to enable the tipping threshold.

Set Tipping Threshold

When you enable the tipping threshold, you can set a custom percentage as the value where the Merchant password is required. By default, the terminal set the threshold value at 50%, but you can adjust it if needed.

To change the tipping percentage threshold:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

7. If you have more than one terminal, repeat steps 1 to 7 for each additional terminal where you want to set the terminal's tipping threshold.

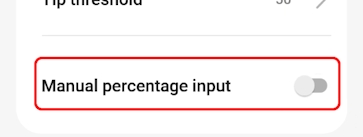

Disable Manual Tip Percentage

By default, the manual tip percentage option is enabled on the terminal and applies automatically whenever you activate the tip processing option; you can easily disable the function if needed.

To disable the manual tip percentage option

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Toggle the Manual percentage input switch to the left.

6. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to disable manual tip percentage.

Disable Tipping

By default, tipping is disabled on the terminal. If you've enabled tip processing, you can easily disable the function if needed.

To disable tipping from a sale

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Toggle the Tip processing switch to the left.

6. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to disable tipping.

Cashback

• Enable Cashback

• Preset Cashback Amount

• Change a Preset Cashback Amount

• Require Customer Signature for Cashback

• Disable Cashback

Enable Cashback

If you want to offer your customers the ability to withdraw cash in addition to their purchase, you can do so for debit card transactions only. By default, cashback is disabled on the terminal.

To enable cashback for a debit sale

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Cashback section.

5. Toggle the Cashback processing switch to the right.

6. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to enable cashback.

Preset Cashback Amount

When you enable cashback for a debit transaction, the terminal automatically displays three preset values (defaults are $20, $40, and $60) as options to the customer. The customer can touch one of the preset values or manually enter an amount for cashback.

To view the preset cashback amounts:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Cashback section.

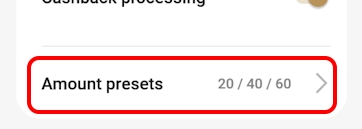

5. The Amount presets display the current values.

6. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to view the terminal's preset cashback amounts.

Change a Preset Cashback Amount

When you enable cashback for debit transactions, the terminal automatically offers preset cashback values to the customer. By default, the preset amounts are set to 20, 40, and 60, but you can easily change one or more of these values as needed.

To change a preset cashback amount

2. Enter the merchant password and touch Confirm.

3. Scroll to the Configure application section.

4. Touch Terminal options.

5. Scroll to the Cashback section.

6. Touch Amount presets.

7. On the Cashback amount presets screen, touch the cashback preset field you want to change (Cashback preset no. 1, Cashback preset no. 2, or Cashback preset no. 3) and replace the current amount with a new value.

8. Repeat step 7 for any additional cashback amount preset value you want to change.

9. If you have more than one terminal, repeat steps 1 to 8 for each additional terminal where you want to change a preset cashback amount

Require Customer Signature for Cashback

As a security measure, you can require customers receiving any cashback amount to confirm they received the cash by signing on the merchant copy of the transaction receipt. By default, this feature is disabled.

When you enable this function, the terminal prints a signature line on the transaction receipt where the customer can sign as proof that they received the requested cashback amount.

To enable or disable the signature line for cashback transactions:

2. Enter the merchant password and touch Confirm.

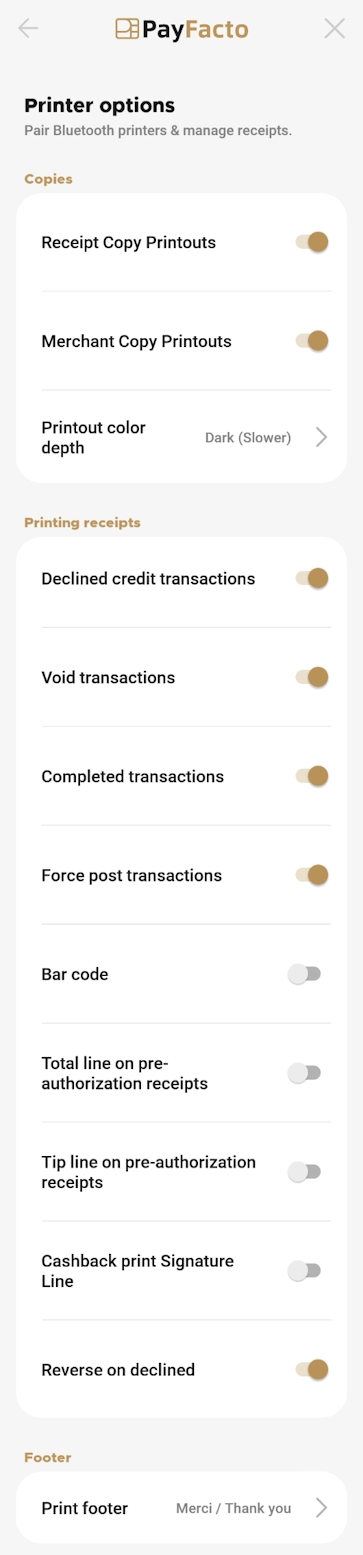

3. In the Configure application section, touch Printer options.

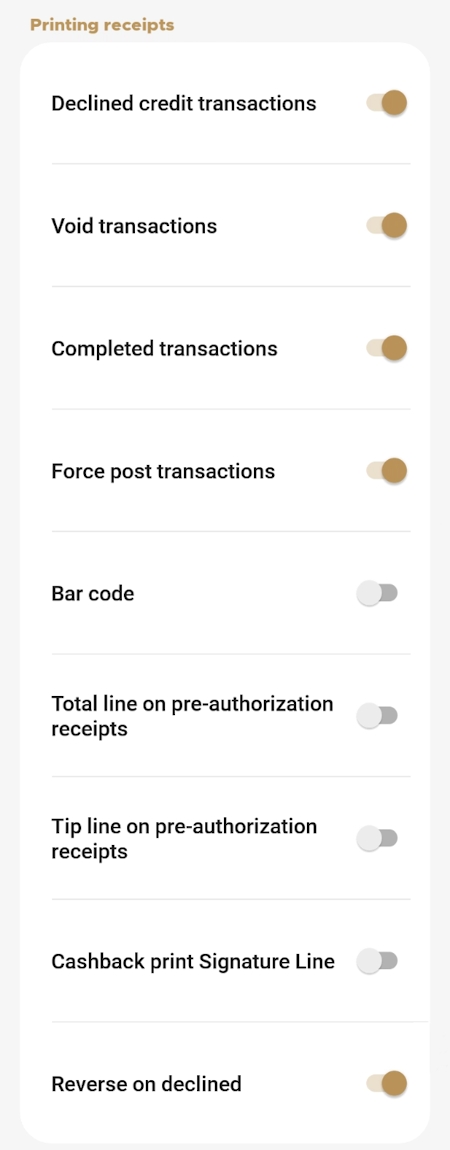

4. In the Printing receipts section, scroll to the Cashback print Signature Line and slide the toggle switch to the right.

   1. To disable the printing of the signature line on the transaction receipt, slide the toggle switch to the left.

5. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to set whether or not the terminal prints a signature line for cashback debit transactions.

Disable Cashback

By default, cashback is disabled on the terminal. If you've enabled cashback, you can easily disable the function if needed.

To disable cashback for a debit sale

2. Enter the merchant password and touch Confirm.

3. Scroll to the Configure application section.

4. Touch Terminal options.

5. Scroll to the Cashback section.

6. Toggle the Cashback processing switch to the left.

7. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to disable cashback.

The Secure Payment application's payment module allows you to assign passwords to protect the terminal from unauthorized use. All terminal passwords are 6 numeric (numbers only) characters in length to provide security without slowing down the overall time it takes to process a transaction.

The terminal has 3 types of user passwords:

• Administrator (Admin): Configured during initial terminal activation

• Merchant: Configured during initial terminal activation

• Operator: Configured when creating one or more terminal operators

Information on specific password procedures

For more information on specific password procedures, click any of the following links:

Understanding Password Hierarchy

The terminal uses passwords for different user levels. The user levels follow a hierarchy, and a “higher” level password can enable a function (or override a password) for a “lower” level user.

For example, an operator can use the Merchant password to enable a password-protected sale, while an Administrator password can unlock functions that require a Merchant password.

Password Requirements

When setting passwords on your payment terminal, you must respect the following parameters:

• Passwords must be 6 characters long

• The Administrator and Merchant passwords cannot be the same (can’t match)

• You cannot use the same digit 6 times consecutively (for example: 111111 or 777777)

• You cannot use 6 consecutive numbers, either ascending or descending (for example: 123456 or 987654)

Incorrect Password Entries

If you enter a password incorrectly, the terminal displays an Access refused error message.

Touch the error message to return to the Password field and re-enter the required password.

Forgotten Passwords

If a user forgets a password, the password reset procedure depends on the terminal user profile. The following table explains who can reset which password and which procedure to use:

Change Administrator Password

As part of your original terminal activation, you set an Administrator password. The Administrator password provides access to advanced terminal functions and can also enable password-protected operations. You can change the Administrator password whenever you feel it necessary.

To change the terminal's Administrator password

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Passwords.

4. Scroll to the Set passwords section.

5. Touch Administrators.

6. Enter the current Admin password in the Password field and touch Confirm.

8. Re-enter the new password in the Confirm new password field.

9. Touch the Confirm button; the new Admin password is saved and the Passwords screen appears. If the passwords do not match, a message appears and the password is not changed. Re-enter the password; if needed, touch the Show password icon to ensure the passwords match.

1. If you have more than one terminal, repeat steps 1 to 10 for each additional terminal where you want to change the Admin password.

Change Merchant Password

As part of your original terminal activation, you set a Merchant password. The Merchant password protects against unauthorized users performing certain operations. You can change the Merchant password whenever you feel it necessary.

To change the terminal's Merchant password

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Passwords.

4. Scroll to the Set passwords section.

5. Touch Merchant.

6. Enter the Admin password in the Password field and touch Confirm. Requiring the Admin password prevents unauthorized changes to the Merchant password.

8. Re-enter the new password in the Confirm new password field.

9. Touch the Confirm button; the new Merchant password is saved and the Passwords screen appears. If the passwords do not match, a message appears and the password is not changed. Re-enter the password; if needed, touch the Show password icon to ensure the passwords match.

1. If you have more than one terminal, repeat steps 1 to 10 for each additional terminal where you want to change the Merchant password.

Password Protection for Functions and Transactions

For added security, you can require the Merchant password for certain functions or transactions before the operation can proceed. By default, this security measure is enabled for the following functions and transactions:

By default, all of the operations listed above have password protection enabled. Reimbursement transactions are always password protected, but you can select if the transaction requires the Admin or Merchant password.

You can disable the password protection on certain sales transactions and exiting the Secure Payment application if desired, but that leaves the terminal vulnerable to unauthorized use where any person could perform those functions.

Reimbursement Passwords

As a security measure, the Secure Payment application requires a password before processing reimbursement transactions. You can choose which password to require (Admin or Merchant) or you can disable passwords for reimbursements, depending on your preference. By default, refunds require the Admin password and voids require the Merchant password.

To set the required password for reimbursements

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Passwords.

4. Scroll to the Require password for transactions section.

5. Touch Refund transactions; the Password on refunds screen appears.

1. Select the desired password by touching Merchant or Admin or touch No password to disable password protection for refunds.

1. Touch the Back icon to return to the Passwords screen.

2. Touch Void transactions; the Password on voids screen appears.

1. Select the desired password by touching Merchant or Admin or touch No password to disable password protection for voids.

1. If you have more than one terminal, repeat steps 1 to 10 for each additional terminal where you want to set the required passwords for reimbursement transactions.

Sales Transaction Passwords

By default, less commonly used sales transactions (cash sale, force post, and swiping the payment card) require the Merchant password before they can be processed. You can choose whether or not to require the Merchant password, depending on your preference.

To select password protection for certain sales transactions

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Passwords.

4. Scroll to the Require password for transactions section.

5. Enable the use of the Merchant password by toggling the following switches to the right:

   • Force post

   • Cash

   • Swipe

6. Disable the use of the Merchant password by toggling the previously listed switches to the left.

7. If you have more than one terminal, repeat steps 1 to 7 for each additional terminal where you want to set password usage for sales transactions.

Application Exit Password

By default, the Secure Payment application's payment module requires the Merchant password before you can exit. You can choose whether or not to require the Merchant password, depending on your preference.

To enable or disable the Merchant password before exiting

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the General section.

5. Enable the use of the Merchant password before closing the payment module by toggling the Ask password on exit switch to the right.

1. Disable the use of the Merchant password before closing the payment module by toggling the Ask password on exit switch to the left.

1. If you have more than one terminal, repeat steps 1 to 7 for each additional terminal where you want to set whether or not to use the Merchant password before exiting the application.

The Secure Payment application's payment module includes tools for training and user assistance. These include:

Training Mode

The terminal has a training mode that allows users to process transactions in a simulated environment allowing them to learn and understand the terminal’s various functions. When in training mode, the terminal does not communicate with the server, and it functions even when the terminal has no network connection. The available options for training mode are:

Enable Training Mode

When you enable training mode, the terminal does not process any actual transactions and has no communication with any other device, everything occurs on the terminal.

To enable training mode

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch Training mode.

4. Toggle the Enable training mode switch to the right.

1. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to enable training mode

Disable Training Mode

When you enable training mode, the terminal is unable to process any transactions. To resume transaction processing, you need to disable training mode.

To disable training mode:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch Training mode.

4. Toggle the Enable training mode switch to the left.

1. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to disable training mode.

Getting Support

The Secure Payment application offers 24/7 customer and technical support.

To access the support menu

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch Support.

4. The Support screen displays the available support options.

Exiting the Application

Should you need to leave the Secure Payment application, there are two methods available:

• Using the Android Back button

• Using the Exit menu from the Settings page

To exit the application using the Android Back button

1. From the main screen, touch the Android system Back button, found on the bottom left third of the screen.

1. Enter the merchant password and touch Confirm.

To exit the application using the Exit menu on the Settings page:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch Exit.

1. Touch the Confirm button to exit the application.

About Secure Payment

The About menu displays information about the terminal and the the installed software version. You may be asked by the PayFacto support team to reference this information, but none of the fields are editable.

To view Secure Payment application information

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch About.

4. The About screen displays the following information:

   • App Version

   • Version Code

   • Device Model

   • Serial Number

If your terminal has a built-in printer, or connects to an external printer, there are several printing options you can configure that determine when a transaction receipt gets printed, as well as the receipt's appearance.

If your terminal is equipped with a printer, you can adjust the printer settings to suit your business needs.

The available printing options are:

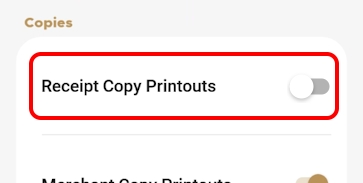

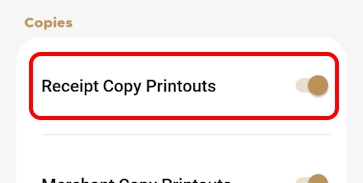

Enable Transaction Receipt Printing

If your terminal is equipped with (or connects to) a printer, you can print transaction receipts after the transaction is confirmed. By default, the Secure Payment application's payment module enables the printing on transaction receipts, but you can adjust the setting if needed.

To enable transaction receipt printing

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

4. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to enable transaction receipt printing.

Enable Merchant Transaction Receipt

When you enable the printing of transaction receipts, the customer receipt is always available to print, but you can choose whether to print the merchant copy or not. Printing the merchant copy for each transaction allows you to reconcile your individual transactions with the batch processing and the transaction reports.

To enable the printing of the merchant copy of the transaction receipt:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

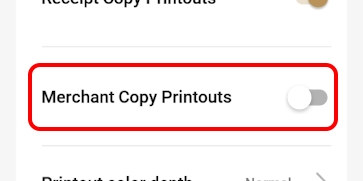

3. In the Copies section, slide the Merchant Copy Printouts toggle switch to the right if it isn't already enabled.

4. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to enable the printing of the merchant copy of the transaction receipt.

Select Printout Contrast Level

The payment terminals use thermal paper to print the transaction receipts. You can adjust the level of contrast for the transaction receipts if they are difficult to read. If you have a mobile or portable payment terminal, the contrast level can affect battery usage.

The following table shows examples of each printout contrast level:

To select the transaction receipt contrast level

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

3. In the Copies section, touch Printout color depth.

4. On the Printout color depth screen, touch the desired contrast level: Pale, Normal, or Dark.

5. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to set the printout contrast level.

Select Which Transactions to Print

In addition to printing receipts for sales transactions, you can print receipts for some non-sales transactions, including:

• Declined credit transactions

• Void transactions

• Completed transactions

• Force post transactions

In addition to the transactions listed above, you can enable or disable the following printer settings:

• Bar code: Prints a barcode on the transaction receipt that identifies the individual transaction; helpful when using a terminal equipped with a scanner when performing refund or void transactions

• Total line on pre-authorization receipts: Adds a total line to the transaction receipt that prints when a pre-authorization is confirmed (usually paired with the tip line)

• Tip line on pre-authorization receipts: Adds a tip line to the transaction receipt that prints when a pre-authorization is confirmed

• Cashback print Signature line: Adds a signature line for cashback transactions for customers to sign as proof that they received the requested cashback amount

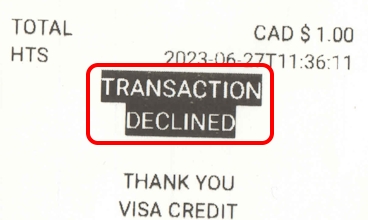

• Reverse on declined: Prints the transaction result in white on a dark background for declined transaction

To enable or disable transaction printing and printing options

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

3. In the Printing receipts section, enable each desired function by sliding the toggle switch to the right or disable functions by sliding the toggle switch to the left.
4. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to set which transactions will print a transaction receipt.

Reprint a Transaction Receipt

If a transaction receipt is lost or damaged, you can print a duplicate copy of the receipt.

To reprint a transaction receipt

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Transaction management section, touch Transaction History.

3. Scroll to or search for the desired transaction to reprint.

1. Touch the desired transaction to display the details.

2. Touch Reprint.

1. In the Reprint screen, touch the button for the transaction receipt you want to reprint:

• Merchant copy

• Customer copy

• Both copies

The terminal prints the selected duplicate copy(ies) of the transaction receipt.

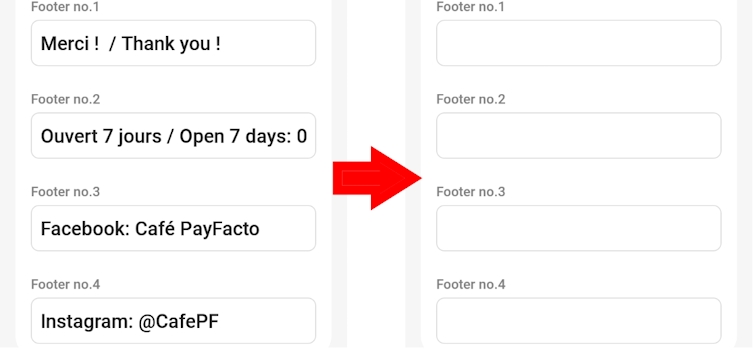

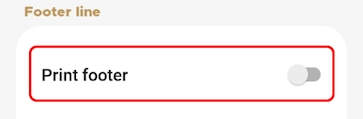

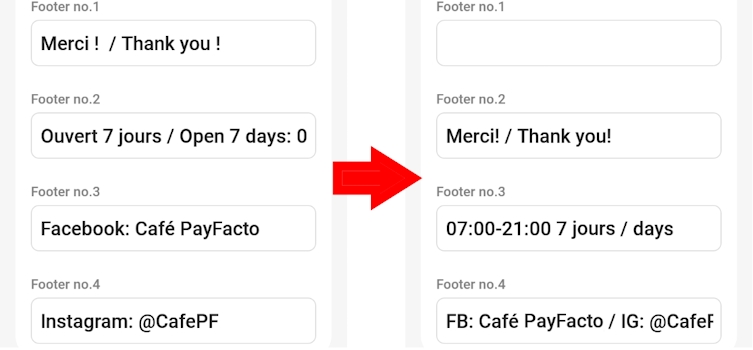

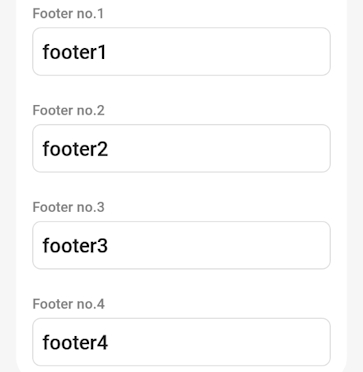

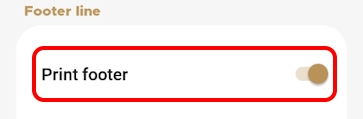

Enable Personalized Message on Receipt Footer

You can add a personalized message at the bottom of every printed transaction receipt. Your message can include business hours, social media coordinates, and more. Your message can contain up to 4 lines with 48 characters (including spaces) per line.

To enable a personalized message at the bottom of your transaction receipts

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

3. Scroll to the bottom of the screen to find the Footer section and touch Print footer.

4. On the Footer option screen, slide the Print footer toggle switch to the right.

5. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to enable a personalized message on the bottom of the transaction receipts.

Configure Custom Footer Message

When you enable printing a personalized message on your transaction receipt footers, you need to configure the message by entering it on one of the four (4) available lines on the receipt footer.

To configure a personalized message at the bottom of your transaction receipts

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

3. Scroll to the bottom of the screen to find the Footer section and touch Print footer.

4. On the Footer option screen, delete the text in the Footer no. 1 field and enter the first line of your custom message.

5. Repeat step 5 for each additional line you want to use for your personalized message, using the Footer no. 2, Footer no. 3, and Footer no. 4 fields.

6. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to configure the personalized message at the bottom of the transaction receipts.

Edit or Delete Personalized Footer Message

When using a personalized message on your transaction receipt footers, you may want to change or delete some of the message. You can easily adjust the footer text whenever you need.

To edit or delete a personalized message at the bottom of your transaction receipts:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

3. Scroll to the bottom of the screen to find the Footer section and touch Print footer. The Footer option screen appears.

4. To edit your message, adjust the text in the Footer no. 1, Footer no. 2, Footer no. 3, and/or Footer no. 4 fields as required, as shown in the following example:

5. If you want to delete your personalized message, delete the text in the Footer no. 1, Footer no. 2, Footer no. 3, and Footer no. 4 fields, as shown in the following example:

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to change the personalized message at the bottom of the transaction receipts.

Disable Personalized Message on Receipt Footer

If you enabled a personalized message at the bottom of every printed transaction receipt, but you no longer want to use any message on the footer, you can easily disable footer message printing.

To disable a personalized message at the bottom of your transaction receipts

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

3. Scroll to the bottom of the screen to find the Footer section and touch Print footer.

4. On the Footer option screen, slide the Print footer toggle switch to the left.

5. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to disable personalized messages at the bottom of the transaction receipts.

Disable Merchant Transaction Receipt

If you previously enabled the printing of merchant transaction receipts and you no longer want or need them, you can quickly disable the function.

To disable the printing of the merchant copy of the transaction receipt

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

3. In the Copies section, slide the Merchant Copy Printouts toggle switch to the left.

4. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to disable the printing of the merchant copy of the transaction receipts.

Disable Transaction Receipt Printing

By default, the Secure Payment application's payment module enables the printing on transaction receipts, but you can disable the function if needed.

To disable transaction receipt printing

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

3. In the Copies section, slide the Receipt Copy Printouts toggle switch to the left.

4. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to disable the printing of transaction receipts.

The topics covered in this page include:

Switch to Standalone Mode

If you experience issues with the third party payment application, you can temporarily switch from using the App to app module to Secure Payment's standalone payment mode. This mode allows you to process transactions directly on the terminal.

To switch from App to app to standalone payment mode:

1. Close the third party payment application if it is still open.

2. If the App to app main screen does not appear, touch the Secure Payment icon on the terminal's main screen.

3. From the App to app main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Semi-integrated configuration section and touch Switch to Standalone.

1. The Settings page closes and the terminal displays the standalone payment module.

1. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to switch the terminal to standalone payment mode.

Switch Back from Standalone Payment Mode

If you switched from using the App to app module to Secure Payment's standalone payment mode, you need to switch back when the communication issue with the 3rd party payment application is resolved.

To switch from standalone payment mode back to app to app:

1. From the standalone payment main screen, touch the Settings button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Semi-integrated configuration section and touch Switch to app to app mode.

The terminal returns to the App to app main screen.

1. Start third party payment application.

2. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to switch back from standalone payment mode.

This section describes the general transaction workflow and user experience when making a purchase with a merchant using the Secure Payment application's App to app module.

Payment Process Begins

The merchant will calculate the total amount using a Point of Sale (POS) system or a cash register and enter the total amount on the payment terminal using the third-party application. The third-party application then communicates the total amount to the Secure Payment application's App to app module.

The next step in the process depends on the type of sale. If the merchant adds any surcharge for debit card transactions (for Canadian merchants only, excluding Quebec), the App to app module applies the associated surcharge to the total amount and requires the customer to confirm the total.

The following sections will describe the workflow without surcharges; the available sale types are:

Sale Without Tip

After the merchant enters the amount on the third-party application, the Secure Payment App to app module displays the total sale amount, at which point the merchant hands the terminal to (or turns it towards) the customer.

1. The customer inserts, swipes, or taps their payment card.

2. The terminal displays a processing screen with the payment card brand logo.

3. After approving (or declining) the payment request, the terminal prints the merchant copy of the transaction receipt and the merchant touches Print receipt to print the customer copy or No receipt if the customer does not want their copy of the transaction receipt.

Sale With Tip

After the merchant enters the amount on the third-party application, the Secure Payment App to app module displays the Add a tip screen, at which point the merchant hands the terminal to (or turns it towards) the customer.

1. The customer selects one of the preset tip percentages, a custom dollar amount, or a custom percentage (if enabled) or they can touch the No tip button.

2. After the customer selects the tip amount, the Total Sale screen appears where the customer then inserts, swipes, or taps their payment card.

3. The terminal displays a processing screen with the payment card brand logo.

4. After approving (or declining) the payment request, the terminal prints the merchant copy of the transaction receipt and the merchant touches Print receipt to print the customer copy or No receipt if the customer does not want their copy of the transaction receipt.

Debit Sale with Cashback

After the merchant enters the amount on the third-party application, the Secure Payment App to app module displays the total sale amount, at which point the merchant hands the terminal to (or turns it towards) the customer. If the sale includes a tip, the terminal displays the Add a tip screen, where the customer selects the tip to add (or not) before inserting the card into the terminal's chip reader.

1. The customer selects the account to debit the sale amount from (Chequing or Savings).

2. The customer selects the amount for cashback.

3. The customer confirms the total amount (sale plus cashback).

4. The customer enters their PIN and touches the Confirm button.

5. The terminal displays a processing screen with the payment card brand logo.

6. After approving (or declining) the payment request, the terminal prints the merchant copy of the transaction receipt and the merchant touches Print receipt to print the customer copy or No receipt if the customer does not want their copy of the transaction receipt.

Processing Gift Cards

For more information on working with gift cards in the Secure Payment application, please refer to the following topics:

For more information on working with gift cards in the Secure Payment application, please refer to the following topics:

• Supported Gift Card Transactions

• Gift Card Processing Workflow

• Processing a Sale with Gift Cards

• Processing a Refund with Gift Cards

Supported Gift Card Transactions

The Secure Payment application currently supports two types of gift card transactions: purchases and refunds. When making a purchase with a gift card, the Secure Payment application launches the appropriate gift card application (DataCandy of Freebees) to redeem the amount of the sale from the gift card's balance. When issuing a refund, the Secure Payment application launches the gift card application and increments the amount to be refunded onto the gift card's balance. Please refer to the following topics for how to process the supported gift card transactions:

• Processing a Sale with Gift Cards

• Processing a Refund with Gift Cards

Any other gift card transaction (activation, empty card, or checkign the balance) must be performed in the appropriate gift card application, according to the gift card application's user guide. For additional information on gift card transactions, please refer to the appropriate brand's documentation:

• DataCandy Gift Card User Guide (online version)

• DataCandy Gift Card User Guide (PDF version)

• Freebees Gift Card User Guide (online version)

• Freebees Gift Card User Guide (PDF version)

Gift Card Processing Workflow

When processing a transaction (sale or refund) using a gift card, the workflow a terminal operator will use depends on the Secure Payment module they are using.

If you are using Secure Payment's Gateway module, the gift card is recognized as soon as the operator swipes the card and the appropriate gift card application is launched (DataCandy or Freebees).

If you are using any other Secure Payment module (App to App, SecurePay, SecureTable, or Standalone Payment), the operator (or customer) must indicate that the card being used is a gift card by tapping the Gift card button.

If the terminal operator or customer do not tap the Gift card button before swiping the card, the terminal displays a screen asking if a gift card is being used.

When you tap the Gift card button or answer Yes to the gift card question, the Secure Payment application launches the appropriate gift card application (DataCandy or Freebees) to process the sale or refund. When the gift card transaction is complete, the terminal returns to the Secure Payment application.

Processing a Sale with Gift Cards

A sales transaction paid for with a gift card is very similar to a regular sale paid for with a credit or debit card. The only difference is that you need to confirm that the card being used to pay is a gift card. The following procedure describes how to process a sale using a gift card.

To process a sale using a gift card:

1. Begin your sale as you would normally, based on the Secure Payment module you are using:

   • App to app: enter the sale amount on the 3rd party terminal application.

   • Gateway: enter the sale amount on the POS to initiate the Secure Payment application on the terminal.

   • SecurePay: enter the sale on the POS to initiate the payment on the terminal.

   • SecureTable: enter the sale on the POS and then retrieve the bill when you've arrived at the table with the payment terminal.

   • Standalone payment: enter the sale amount on the terminal and touch OK.

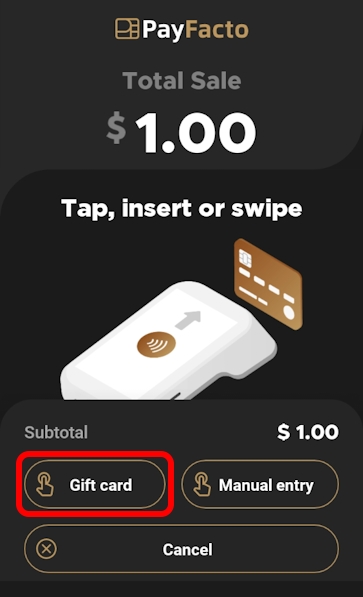

2. On the Total Sale screen, touch the Gift card button; if the payment process includes a tip, select the tip and then touch the Gift card button on the Total Sale screen.

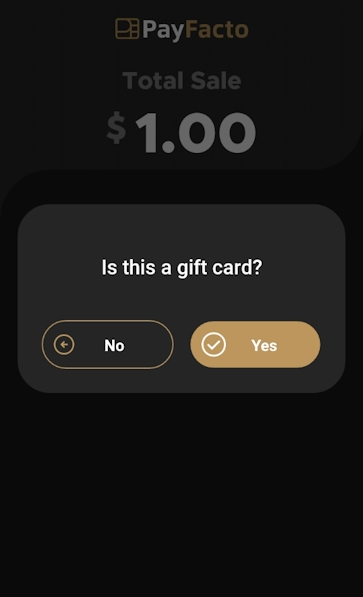

If neither the operator nor customer touch the Gift card button before swiping the card, the terminal will present the following screen:

Tap Yes to continue the transaction using a gift card or No to return to the Total Sale screen to use a credit or debit card.

1. The Secure Payment application then launches the required gift card processing application (DataCandy or Freebees) to complete the transaction and print the transaction receipt.

2. When the gift card sale is complete, the terminal leaves the gift card application and returns to the main Secure Payment application screen.

Processing a Refund with Gift Cards

A refund for a transaction originally paid for with a gift card is very similar to a regular credit or debit card refund. The only difference is that you need to confirm that the card being used to pay is a gift card. The following procedure describes how to process a refund using a gift card.

To process a refund for a sale that used a gift card:

1. Begin your refund as you would normally, based on the Secure Payment module you are using:

   • App to app: select the refund transaction and enter the refund amount on the 3rd party terminal application.

   • Gateway: enter the refund amount on the POS to initiate the Secure Payment application on the terminal.

   • SecurePay: enter the refund on the POS to initiate the payment on the terminal.

   • SecureTable: enter the refund on the POS and then retrieve the bill when you've arrived at the table with the payment terminal.

   • Standalone payment: select the refund transaction from the Operations menu and enter the refund amount on the terminal and touch OK.

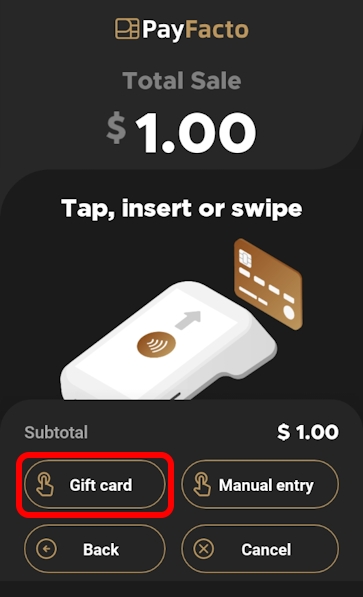

2. On the Refund screen, touch the Gift card button.

If neither the operator nor customer touch the Gift card button before swiping the card, the terminal will present the following screen:

Tap Yes to continue the refund transaction.

1. The Secure Payment application then launches the required gift card processing application (DataCandy or Freebees) to refund (increment) the sale amount to the gift card balance and print the transaction receipt.

2. When the gift card refund is complete, the terminal leaves the gift card application and returns to the main Secure Payment application screen.

Configuration Settings

The Secure Payment application's Gateway module has multiple configurable features and functions. The features and functions apply to all Secure Payment modules you may use, including standalone Payment, SecurePay, SecureTable, and Gift Cards.

For the Gateway module, the feature you will most likely need to configure is tipping, but you can access the following configuration menus:

• Accessing Configuration Settings

• Connection Settings

• Transaction Management

  • Print Detailed Transaction Report

  • Print Batch Summary Report

• Application Configuration

  • Configure Password Options

  • Configure Tipping Options

  • Configure Printing Options

• Help and Training Tools

  • Training Mode

  • Getting Support

  • Exiting the Application

  • About Secure Payment

Accessing Configuration Settings

To access the Gateway module's configuration settings:

1. From the Gateway home screen, touch the menu icon at the top-left corner of the screen.

1. Enter the merchant password and touch the Confirm button. The Settings page appears.

Purpose of this document

This document addresses the configuration and use of the Secure Payment application's Gateway module. The Gateway module allows a Point of Sale (POS) system to communicate with a payment terminal to complete a sales transaction.

The typical information flow between the POS system and the payment terminal has the POS send the sale amount to the payment terminal. On the terminal, the customer confirms the sale amount and presents their card for reading. The terminal communicates with the authorization server and displays the result. The approved (or declined) transaction information is then communicated back to the POS system to conclude the transaction.

On the terminal, the customer can add a tip (or cashback where applicable) that is added to the sale amount; the updated amount is sent for authorization and the response (including any added tip, cashback, or surcharge) is returned to the POS system to conclude the transaction and print the transaction receipt. No payment card information is communicated from the terminal to the POS system.

Gateway Module

The Gateway module is a universal middleware platform that provides an EMV-Compliant, Pay at the Counter (PATC) processing solution that can be connected to a POS (Point of Sale) system.

The Android-based Gateway module is a bi-directional interface which links the PayFacto payment application to a POS system. The Gateway module automates some operations which previously had to be carried out by the clerk, such as the entry of the sales amount and card brand selection. The Gateway module is especially well-suited to quick service environments and drive-through windows, with or without tip management.

Accurate payment reporting

The integration of the Gateway module with various POS systems allows the payment terminal to retrieve guest check data from the POS System. After the payment terminal processes a payment, the Gateway module sends the payment data back to the POS System for reporting purposes. Payment amounts, tip amounts and card brand used are all automatically transmitted to the POS system to allow for accurate reporting.

Download the PDF

Search the section

The Gateway module allows you to view the connection settings to your POS system. The connection settings should not be modified unless specifically instructed to do so by PayFacto support. Changing the settings may affect the terminal's ability to communicate with the POS.

To view the terminal's network connection settings:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Semi-integrated configuration section and touch Gateway settings.

1. In the Connection section, review the information that appears.

• TPV Client: Read-only field, this lists the terminal's unique identifier (TID).

• Connection address: Displays the URL to the authorization server. Do not change unless instructed to do so by PayFacto support.

• Port: Read-only field, this lists the port the terminal uses to connect to the authorization server.

1. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal to review the terminal's connection settings.

When using the Secure Payment application, it is helpful to have a list of processed transactions to ensure your bookkeeping is aligned with your business' sales. The terminal can print transaction reports, allowing you to view either detailed or summary information on the transactions and transaction types for the terminal's current batch; if your business uses multiple terminals, you need to print reports on those terminals to view their reports.

Detailed reports display a list of every transaction in the current batch, including date, time, transaction type, payment method, invoice number, and amount. Summary reports group the transactions by card type, displaying the total sales, and the number of transactions.

The terminal’s printer (built-in or external) can print transaction reports for the current batch. For reconciliation purposes, you may want to print a report prior to the automated settlement, but it is not a requirement. Printing reports is meant to assist with your bookkeeping.

The available transaction reports are:

Search for a Transaction

You can search for transactions on the terminal to view the details about one or more transactions. If you have multiple terminals operating under the same merchant ID (MID), all transactions from all terminals appear in the list with the most recent transaction at the top of the list. You can search for transactions in the current (open) batch as well as from previous batches.

To search for a transaction:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Transaction management section, touch Transaction History.

1. Touch the Search button.

2. Enter one or more of the following search criteria:

   • An invoice number in the Invoice number field

   • An authorization code in the Authorization code field

   • Touch the Time range field to select a date range for the desired transaction; touch Save to search using the selected date range

3. Touch the Search button. The terminal returns any transaction that meets the selected search criteria.

4. Touch the desired transaction to display the details.

Print Detailed Transaction Report

The detailed report for the current batch of transactions lists each individual transaction’s details. You may want to print the detailed transaction in order to have a printed copy of the transactions prior to processing the the current batch. Printing a detailed report allows you to reconcile each transaction as part of your bookkeeping.

To print a detailed list of transactions for the current batch:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Transaction management section, touch Reports.

1. In the Batch Details section, touch Print Batch Details. The terminal prints the Batch Details Report, listing all transaction details in the current batch for all terminal operators.

2. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to print the detailed transaction report.

Print Batch Summary Report

The summary report for the current batch of transactions allows you to see the totals for each payment method used, including sales, refunds, tips, cashbacks, and fees. You may want to print the summary report to reconcile transactions by payment type as part of your bookkeeping prior to processing the current batch.

To print a summary list of transactions for the current batch:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Transaction management section, touch Transaction History.

1. In the Batch Summary section, touch Print Batch Summary. The terminal prints the Summary Details Report, listing all transactions in the current batch, grouped by card type for all terminal operators.

2. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to print the summary transaction report.

Enable Cashback

If you want to offer your customers the ability to withdraw cash in addition to their purchase, you can do so for debit card transactions only. By default, cashback is disabled on the terminal.

To enable cashback for a debit sale:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Cashback section.

5. Toggle the Cashback processing switch to the right.

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to enable cashback.

Preset Cashback Amount

When you enable cashback for a debit transaction, the terminal automatically displays three preset values (defaults are $20, $40, and $60) as options to the customer. The customer can touch one of the preset values or manually enter an amount for cashback.

To view the preset cashback amounts:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Cashback section.

5. The Amount presets display the current values.

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to view the terminal's preset cashback amounts.

Change a Preset Cashback Amount

When you enable cashback for debit transactions, the terminal automatically offers preset cashback values to the customer. By default, the preset amounts are set to 20, 40, and 60, but you can easily change one or more of these values as needed.

To change a preset cashback amount:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Cashback section.

5. Touch Amount presets.

1. On the Cashback amount presets screen, touch the cashback preset field you want to change (Cashback preset no. 1, Cashback preset no. 2, or Cashback preset no. 3) and replace the current amount with a new value.

1. Repeat step 7 for any additional cashback amount preset value you want to change.

2. If you have more than one terminal, repeat steps 1 to 8 for each additional terminal where you want to change a preset cashback amount.

Require Customer Signature for Cashback

As a security measure, you can require customers receiving any cashback amount to confirm they received the cash by signing on the merchant copy of the transaction receipt. By default, this feature is disabled.

When you enable this function, the terminal prints a signature line on the transaction receipt where the customer can sign as proof that they received the requested cashback amount.

To enable or disable the signature line for cashback transactions:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. In the Configure application section, touch Printer options.

1. In the Printing receipts section, scroll to the Cashback print Signature Line and slide the toggle switch to the right.

To disable the printing of the signature line on the transaction receipt, slide the toggle switch to the left.

1. If you have more than one terminal, repeat steps 1 to 4 for each additional terminal where you want to set whether or not the terminal prints a signature line for cashback debit transactions.

Disable Cashback

By default, cashback is disabled on the terminal. If you've enabled cashback, you can easily disable the function if needed.

To disable cashback for a debit sale:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Cashback section.

5. Toggle the Cashback processing switch to the left.

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to disable cashback.

The Secure Payment application's payment module includes tools for training and user assistance. These include:

Training Mode

The terminal has a training mode that allows users to process transactions in a simulated environment allowing them to learn and understand the terminal’s various functions. When in training mode, the terminal does not communicate with the server, and it functions even when the terminal has no network connection. The available options for training mode are:

Enable Training Mode

When you enable training mode, the terminal does not process any actual transactions and has no communication with any other device, everything occurs on the terminal.

To enable training mode:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch Training mode.

4. Toggle the Enable training mode switch to the right.

1. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to enable training mode.

Disable Training Mode

When you enable training mode, the terminal is unable to process any transactions. To resume transaction processing, you need to disable training mode.

To disable training mode:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch Training mode.

4. Toggle the Enable training mode switch to the left.

1. If you have more than one terminal, repeat steps 1 to 5 for each additional terminal where you want to disable training mode.

Getting Support

The Secure Payment application offers 24/7 customer and technical support.

To access the support menu:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch Support.

4. The Support screen displays the available support options.

Exiting the Application

Should you need to leave the Secure Payment application, there are two methods available:

• Using the Android Back button

• Using the Exit menu from the Settings page

To exit the application using the Android Back button:

1. From the main screen, touch the Android system Back button, found on the bottom left third of the screen.

1. Enter the merchant password and touch Confirm.

To exit the application using the Exit menu on the Settings page:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch Exit.

1. Touch the Confirm button to exit the application.

About Secure Payment

The About menu displays information about the terminal and the the installed software version. You may be asked by the PayFacto support team to reference this information, but none of the fields are editable.

To view Secure Payment application information:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Help & training tools section.

3. Touch About.

4. The About screen displays the following information:

   • App Version

   • Version Code

   • Device Model

   • Serial Number

The Secure Payment application's payment module allows you to assign passwords to protect the terminal from unauthorized use. All terminal passwords are 6 numeric (numbers only) characters in length to provide security without slowing down the overall time it takes to process a transaction.

The terminal has 3 types of user passwords:

• Administrator (Admin): Configured during initial terminal activation

• Merchant: Configured during initial terminal activation

• Operator: Configured when creating one or more terminal operators

For more information on specific password procedures, click any of the following links:

Understanding Password Hierarchy

The terminal uses passwords for different user levels. The user levels follow a hierarchy, and a “higher” level password can enable a function (or override a password) for a “lower” level user.

For example, an operator can use the Merchant password to enable a password-protected sale, while an Administrator password can unlock functions that require a Merchant password.

The hierarchy of passwords is the following:

Password Requirement

When setting passwords on your payment terminal, you must respect the following parameters:

• Passwords must be 6 characters long

• The Administrator and Merchant passwords cannot be the same (can’t match)

• You cannot use the same digit 6 times consecutively (for example: 111111 or 777777)

• You cannot use 6 consecutive numbers, either ascending or descending (for example: 123456 or 987654)

Incorrect Password Entries

If you enter a password incorrectly, the terminal displays an Access refused error message.

Touch the error message to return to the Password field and re-enter the required password.

Forgotten Passwords

If a user forgets a password, the password reset procedure depends on the terminal user profile. The following table explains who can reset which password and which procedure to use:

Change Administrator Password

As part of your original terminal activation, you set an Administrator password. The Administrator password provides access to advanced terminal functions and can also enable password-protected operations. You can change the Administrator password whenever you feel it necessary.

To change the terminal's Administrator password:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Passwords.

4. Scroll to the Set passwords section.

5. Touch Administrators.

6. Enter the current Admin password in the Password field and touch Confirm.

8. Re-enter the new password in the Confirm new password field.

9. Touch the Confirm button; the new Admin password is saved and the Passwords screen appears. If the passwords do not match, a message appears and the password is not changed. Re-enter the password; if needed, touch the Show password icon to ensure the passwords match.

1. If you have more than one terminal, repeat steps 1 to 10 for each additional terminal where you want to change the Admin password.

Change Merchant Password

As part of your original terminal activation, you set a Merchant password. The Merchant password protects against unauthorized users performing certain operations. You can change the Merchant password whenever you feel it necessary.

To change the terminal's Merchant password:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Passwords.

4. Scroll to the Set passwords section.

5. Touch Merchant.

6. Enter the Admin password in the Password field and touch Confirm. Requiring the Admin password prevents unauthorized changes to the Merchant password.

8. Re-enter the new password in the Confirm new password field.

9. Touch the Confirm button; the new Merchant password is saved and the Passwords screen appears. If the passwords do not match, a message appears and the password is not changed. Re-enter the password; if needed, touch the Show password icon to ensure the passwords match.

1. If you have more than one terminal, repeat steps 1 to 10 for each additional terminal where you want to change the Merchant password.

Password Protection for Functions and Transactions

For added security, you can require the Merchant password for certain functions or transactions before the operation can proceed. By default, this security measure is enabled for the following functions and transactions:

By default, all of the operations listed above have password protection enabled. Reimbursement transactions are always password protected, but you can select if the transaction requires the Admin or Merchant password.

You can disable the password protection on certain sales transactions and exiting the Secure Payment application if desired, but that leaves the terminal vulnerable to unauthorized use where any person could perform those functions.

Reimbursement Passwords

As a security measure, the Secure Payment application requires a password before processing reimbursement transactions. You can choose which password to require (Admin or Merchant) or you can disable passwords for reimbursements, depending on your preference. By default, refunds require the Admin password and voids require the Merchant password.

To set the required password for reimbursements:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Passwords.

4. Scroll to the Require password for transactions section.

5. Touch Refund transactions; the Password on refunds screen appears.

1. Select the desired password by touching Merchant or Admin or touch No password to disable password protection for refunds.

1. Touch the Back icon to return to the Passwords screen.

2. Touch Void transactions; the Password on voids screen appears.

1. Select the desired password by touching Merchant or Admin or touch No password to disable password protection for voids.

1. If you have more than one terminal, repeat steps 1 to 10 for each additional terminal where you want to set the required passwords for reimbursement transactions.

Sales Transaction Passwords

By default, less commonly used sales transactions (cash sale, force post, and swiping the payment card) require the Merchant password before they can be processed. You can choose whether or not to require the Merchant password, depending on your preference.

To select password protection for certain sales transactions:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Passwords.

4. Scroll to the Require password for transactions section.

5. Enable the use of the Merchant password by toggling the following switches to the right:

   • Force post

   • Cash

   • Swipe

1. Disable the use of the Merchant password by toggling the previously listed switches to the left.

2. If you have more than one terminal, repeat steps 1 to 7 for each additional terminal where you want to set password usage for sales transactions.

Application Exit Password

By default, the Secure Payment application requires the Merchant password before you can exit. You can choose whether or not to require the Merchant password, depending on your preference.

To enable or disable the Merchant password before exiting:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the General section.

5. Enable the use of the Merchant password before closing the payment module by toggling the Ask password on exit switch to the right.

1. Disable the use of the Merchant password before closing the payment module by toggling the Ask password on exit switch to the left.

1. If you have more than one terminal, repeat steps 1 to 7 for each additional terminal where you want to set whether or not to use the Merchant password before exiting the application.

You can configure your terminal to add a tip to the total sale. You can also configure cashback options for debit transactions (if supported). The topics covered in this section include:

Tipping

Enable Tipping

If your business includes the option to tip, you can enable tipping on the terminal, where the customer can add a tip value in addition to the sale. By default, tipping is disabled on the terminal.

To enable tipping in addition to the sale:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Toggle the Tip processing switch to the right.

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to enable tipping.

Disable Tipping

By default, tipping is disabled on the terminal. If you've enabled tip processing, you can easily disable the function if needed.

To disable tipping from a sale:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Toggle the Tip processing switch to the left.

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to disable tipping.

Preset Tip Percentage

When you enable tipping, the terminal automatically displays three preset percentages (default values are 15%, 18%, and 20%) as options to the customer. The customer can touch one of the preset values or manually enter an amount for the tip.

To view the preset tipping percentages:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. The Percentage presets display the current values.

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to view the terminal's preset tip percentages.

Enable Manual Tip Percentage

When you enable tip processing, the terminal automatically offers preset percentage values to the customer. You can also offer the opportunity for customers to enter their own percentage value. By default, the manual tip percentage option is enabled on the terminal and applies automatically whenever you activate the tip processing option.

To enable the manual tip percentage option:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. If it isn't already enabled, toggle the Manual percentage input switch to the right.

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want enable a manual tip percentage.

Disable Manual Tip Percentage

By default, the manual tip percentage option is enabled on the terminal and applies automatically whenever you activate the tip processing option; you can easily disable the function if needed.

To disable the manual tip percentage option:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Toggle the Manual percentage input switch to the left.

1. If you have more than one terminal, repeat steps 1 to 6 for each additional terminal where you want to disable manual tip percentage.

Change a Preset Tip Percentage

When you enable tip processing, the terminal automatically offers preset percentage values to the customer. By default, the preset percentage values are set to 15, 18, and 20, but you can easily change one or more of these values as needed.

To change a preset tip percentage:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Touch Percentage presets.

1. On the Tip percentage presets screen, touch the tip preset field you want to change (Tip preset no. 1, Tip preset no. 2, or Tip preset no. 3) and replace the current percentage with a new value.

1. Repeat step 7 for any additional percentage preset values you want to change.

2. If you have more than one terminal, repeat steps 1 to 8 for each additional terminal where you want to change the preset tip percentage values.

Change Tip Preset Text Size

When you enable tip processing, the terminal automatically offers preset percentage values to the customer. By default, the preset percentages use the Normal text size to display the values, but you can choose to use Large or Very Large text to suit your requirements, as shown in the following examples:

To change the text size for the preset tip percentages:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Touch Tip presets text size.

1. On the Tip presets text size screen, touch the text size you want to use (Normal, Large, or Very Large).

1. If you have more than one terminal, repeat steps 1 to 7 for each additional terminal where you want to set preset tip percentage text size.

Enable Tipping Threshold

There can be situations where your customers may accidentally enter a manual tip amount or percentage incorrectly and leave a larger tip than planned. By default, the terminal enables a tipping threshold that requires the Merchant password for any custom tip (amount or percentage) that exceeds the threshold (the default threshold is 50%).

To enable the tipping percentage threshold:

1. From the main screen, touch the Menu button.

1. Enter the merchant password and touch Confirm.

2. Scroll to the Configure application section.

3. Touch Terminal options.

4. Scroll to the Tips section.

5. Touch Tip threshold.
