SecureTable Application - Basic Navigation

Starting the SecureTable Application

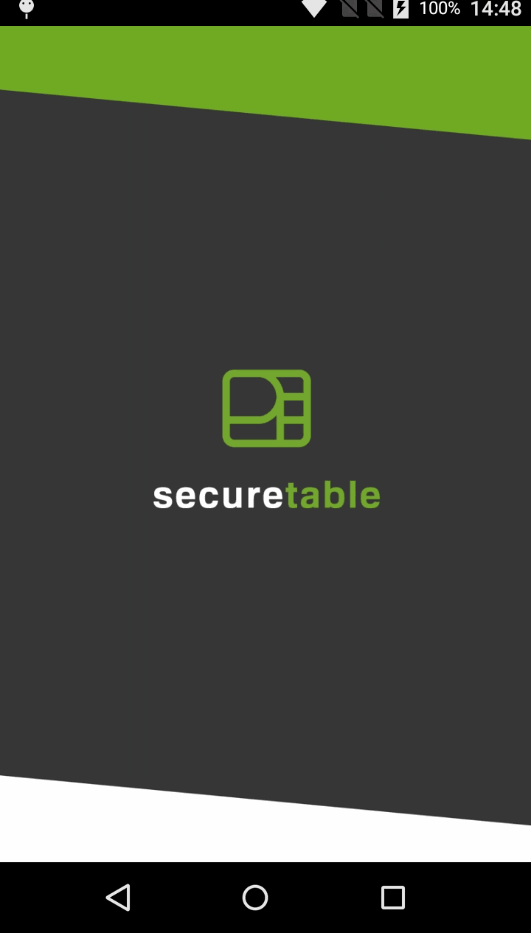

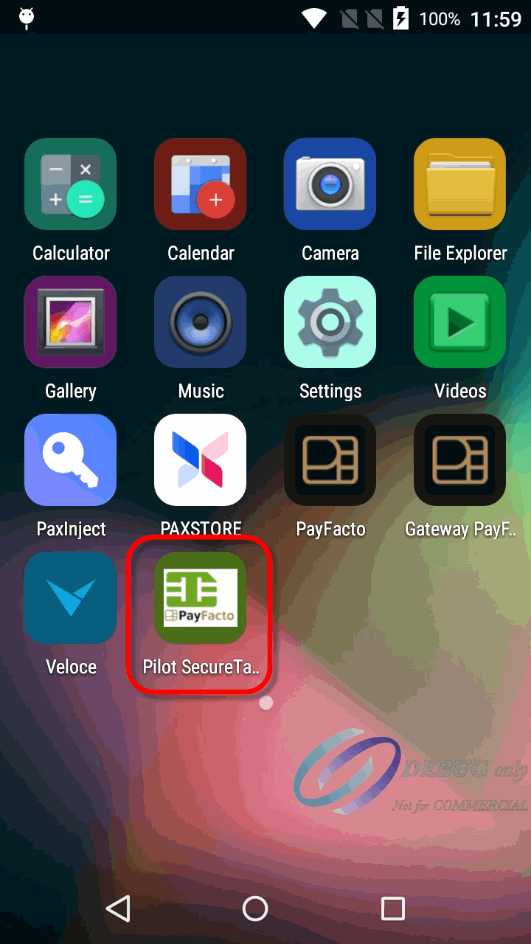

If the SecureTable application does not start automatically, simply touch the appropriate icon on the Android home screen. A splash screen will briefly be displayed, followed by the SecureTable home screen.

---

Basic Navigation

Enter Button

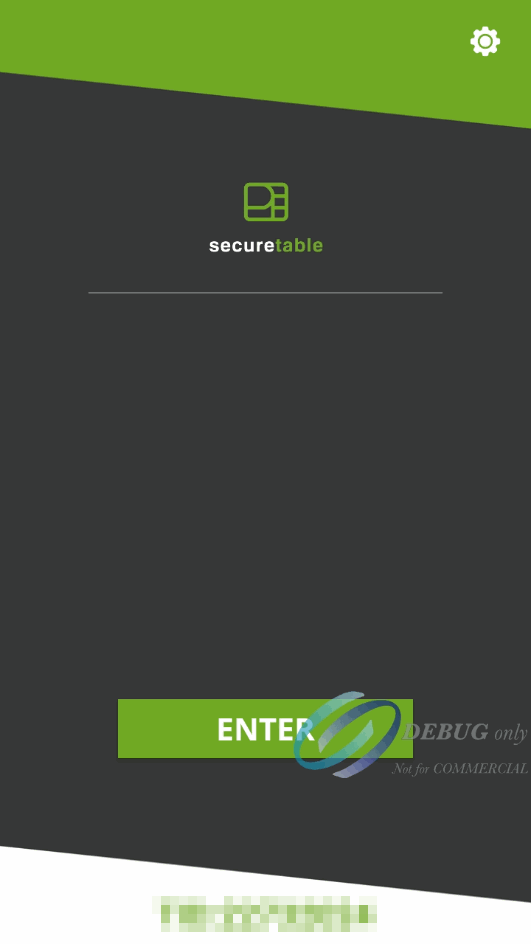

Use the ENTER button to start a transaction with SecureTable. Settings The

Settings

The Settings button is used to access SecureTable's configuration options. This icon appears in the topright corner of the SecureTable home screen.

Home

When available, the Home button will appear in the top-right corner of the screen. Use it to jump directly to the SecureTable home screen without saving changes.

Back

When available, the Back button will appear in the top-left corner of the screen. Use it to go back to the previous screen without saving changes.

WiFi / 4G LTE

When available, the Wifi or 4G/LTE icon will appear in the top-left corner of the screen. The icon indicates which network is currently being used. Touching the icon allows the user to switch from WiFi to LTE or viceversa.

---

Default Password

The SecureTable application settings are protected by a password. The default password on a new installation is 1234.

NOTE: It is highly recommended to change the default password as soon as possible. See SecureTable Application Configuration for the detailed procedure.

---

Exit the SecureTable Application

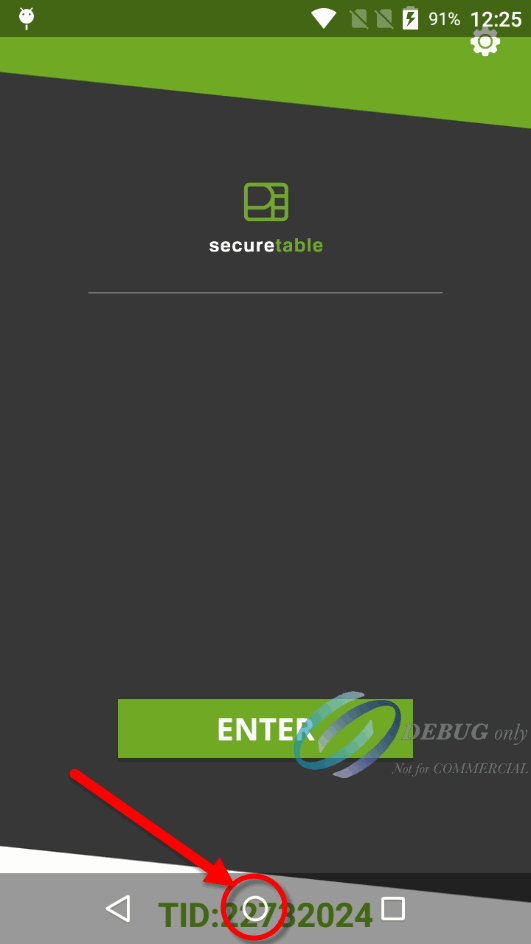

1. To exit the SecureTable application, swipe the terminal's screen either from the top edge going down, or the bottom edge going up, then touch the Android Home (circle) button.

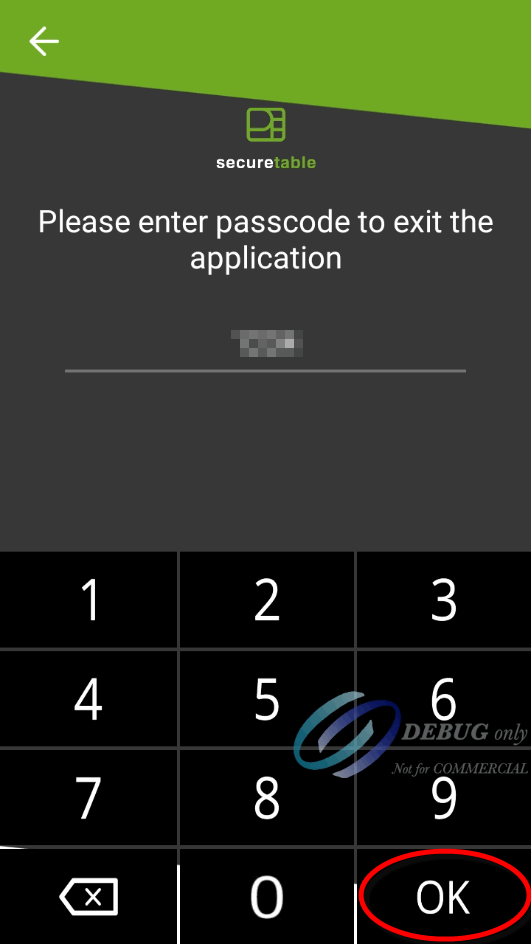

2. You will be prompted to enter a passcode to exit the application. Enter the passcode and touch the OK button.

NOTE: The default passcode after a new installation is 1234. It is the same as the settings password.
